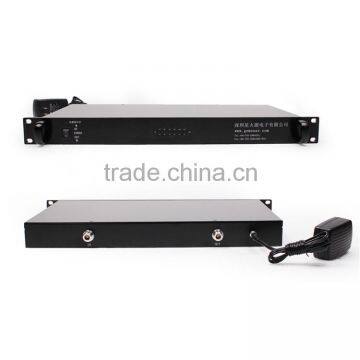

Rack-mounted step adjustable GPS Amplifier

RGA30-SV is our latest rack-mounted single stage of the low noise amplifier. Cover GPS, Galileo, and GLONASS,Beidou 2 frequencies etc. The device features 35dB gain and a noise figure less than 3dB. Since the product consumes less than 20mA, the device can be placed in line with the receiver antenna and can be powered by the GPS receiver's antenna voltage output.

   GPS Signal Indoor, Timing, Survey, Wireless Communication etc.

   Gain : 0~35dB, Variable options available .

  Response For

  GPS:L1,L2,L2C,L5;

  Glonass:G1,G2;
  Galileo:L1,E1,E2,E5(E5a,E5b),E6;
  Beidou2:B1,B2,B3;
  IRNSS L1,L5;

  OmniStar

Electrical Specifications, Operating Temperature -40 to 85°c

Functional description:

      Used to adjust system gain,0-35 dB adjustable, you can control when needed. with AC220/9V power adapter, supply power to system and itself.

1.2 are input/output, connect to cable assembly, N female(Can be customized).  3.  For power control switch. system power-on when allocated to upward, opposite, system stops working.

4.  Toggle switch can adjust the gain ; the position(figure) that toggle switch stop represents the total value of gain reduction (on the basis of maximum gain 35dB).

 [ Performance Data]

    Gain :0dB

Gain :15dB

[ Mechanical]

Frequency reference table:

Our Client

Warranty:
1. 1 years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
