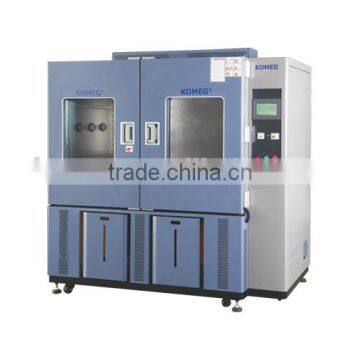

KOMEG KMH-1000S High & Low Temperature Environmental Test Chamber

Temperature Humidity Chamber is also called environment testing machine, used to test various types of materials for their tolerances of heat, coldness, dryness and wetness. It is widely used in quality inspection of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

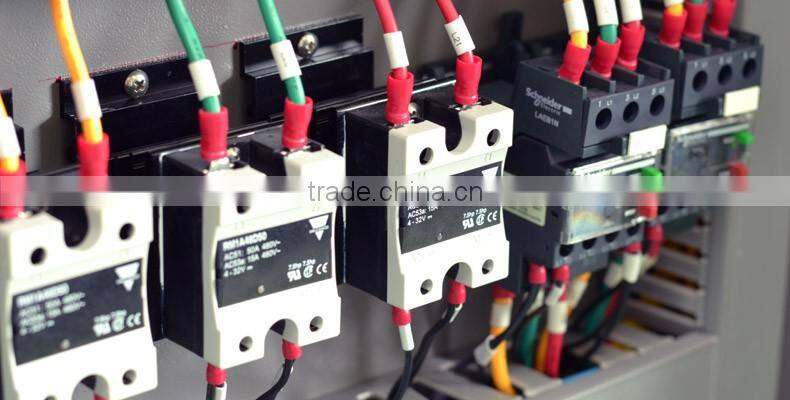

1 Large system capacity: 120 patterns*1200 steps, circulation Setting: Max. 9999 cycles, PID+SSR/SCR controller. Curves drawing, safety device
2 RS-232&RS-485 communication interface.
3 CE certification
4 5.5" LCD Touch screen controller
5 SUS#304 stainless steel plate inner chamber, stainless steel plate with
Powder coated exterial chamber.

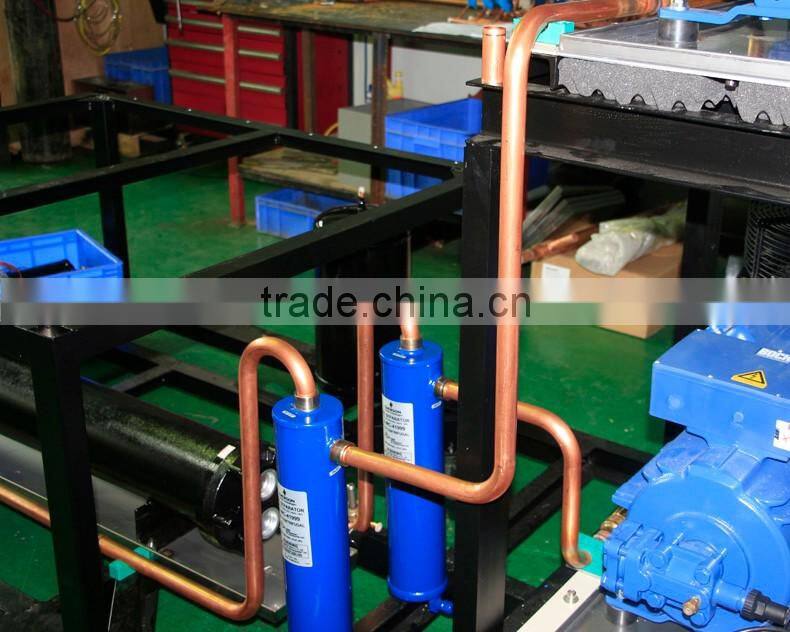

6 France imported Tecumseh compresser, environmental-friendly refrigerant (R404A, R23)
7 PU&fiberglass wool insulation is to make the temperature stable.
8 Large glass observation window with lamp, users can see the sample test effects directly.
9 Using more powerful wing-blower air supply to make the temperature and humidity evenly distributed in the test area.
10 Best after sales service: One year free parts maintenance.
11 Meet international test standards.
12 Customization is available & welcomed.

KOMEG KMH-1000S High & Low Temperature Environmental Test Chamber

Standard Met and Implemented:

GB/Bb T2423.2-89 high temperature test method

GB2423.1-89 test A: low temperature test method 6

GJB150.4-1986 test at low temperature

IEC60068-2-1 low temperature test method

IEC60068-2-38 temperature cycle

IEC60068-2-78 constant humidity temperature

MIL - STD - 202G - 103B humidity test

IEC60068-2-30 humidity temperature cycle

GB/T2423.3 constant humidity heat test method

Installation environment
Distance from the wall to both sides and rear of chamber more than 800mm, to the front more than 1500mm. Provide independent power distribution switchgear and humidification condensate drains, and external power connector device is necessary
Ground level, well-ventilated , non- flammable, explosive, corrosive gases and dust
No strong electromagnetic radiation nearby
With floor drain ( less than 2 meters from the refrigeration unit )
Venue floor load capacity : not less than800kg/m²
Leave adequate space for maintenance

Besides this, we have a lot of other chamber for your reference:

3-zone/ 2-zone Thermal Shock Chamber

Walk-in Constant Temp. and Humidity Chamber

Rapid Temp. Change Chamber

Precise Drying Test Chamber

Temperature/  humidity/ vibration three integrated Chamber

Precise Drying Chamber

Vacuum oven/ no oxidation oven

Air Exchange Type Aging Oven

Burn-in Room

Salt spray Chamber

Vibration Testing Machine


  If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.

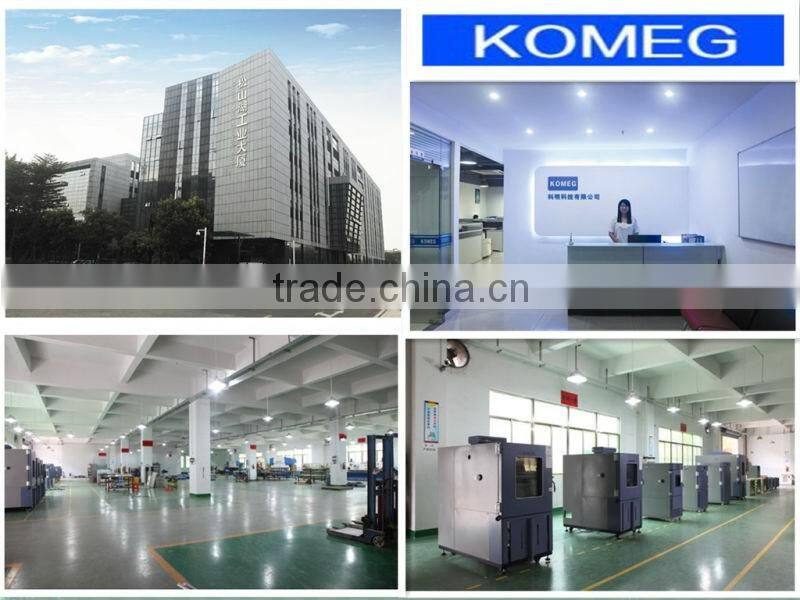

  Komeg has been the brand of Komeg Technology Industrial since 1990. We manufacture environmental simulation test equipment for quality-conscious customers. Our factory is located in Dongguan, covering an area of 5,000 square meters, with over 52 employees including 26 R&D engineers.

 Welcome to visit

Experienced and skilled staff;
High precision & reliability performance;
Prompt after-sale service;

Persist on the philosophy all the time
