Low Price and Portable MINI Bench Top New Climatic and Thermostatic Chambers With Program Control
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Large Dimension Temperature and Climate Test Cabinets for Highly Accelerated Life Test
-
Large Volume Energy Saving Environmental Test Rooms for Material Physical Damage Testing
-
Low Noise Energy Conservation Temperature and Climate Test Chambers For Rapid Temperature Changing Tests
-
Low Noise Energy-saving 30% High-low Temperature Test Chamber for Auto Electronics Parts
-
Low Noise Energy-saving 30% Temperature Humidity Test Chamber for Electronics Component Testing
-
High-density Rigid PU Foam Insulation Temperature Humidity Test Chamber for Electronics Component Testing
Product Details
| Place of Origin | Guangdong, China | Brand Name | KOMEG | |
| Model Number | KMH-R series | Usage | Industrial | |
| Theory | Temperature Controller | Accuracy | 0.5 | |
| Temperature Range | -50-150C |
Product Description
Temperature Humidity Chamber
Suitable for electric, electronic, mechanical, and other products, spare parts and materials for high and low temperature test, damp heat test, simulation under the condition of temperature and humidity changes to products, parts and materials for quality and reliability test.
| Benchtop Climatic Chamber | ||
| Secifications ( at +20ºC room temp. Or+25ºC water temp with empty load) | ||
| Model | KMH-36L | |
| 36L chamber volume | ||
| Temp. range | -50 ºC~+150ºC | |
| Interior sizel | W(mm) | 300 |
| H(mm) | 400 | |
| D(mm) | 300 | |
| Exterior size | W(mm) | 460 |
| H(mm) | 780 | |
| D(mm) | 1020 | |
| Power(KW) | 4.5 | |
| Weight(KG) | 100 | |
| Temp. constancy | ±0.5ºC | |
| Temp. uniformity | ±2.0ºC | |
| Heat up time | -50ºC~+150ºC, within 70 min | |
| Pull down time | +20ºC~-50ºC , within 60 min | |
| Humidity Range | 20~98%R.H | |
| Humidity constancy | ±2.5%R.H | |
| Standard accessories | Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m | |
| Safety device (standard) | No fuse breaker, over pressureover heat and over current protection for compressor, | |
| Over temp. protect, over load protect of blower, dry heat protection | ||
| Control System | Balanced Temperature & Humidity Control System | |

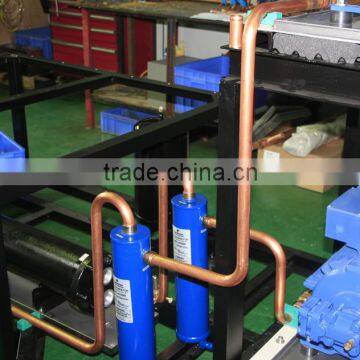

| Refrigeration system | Air Cooled (Water Cooled Type is option) | |
| Hermetic compressor,Single stage refrigeration system | ||
| CFC-Free refrigerant(HFC-507/HFC-23) | ||
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable | |
| Operation model :Program or fix point running | ||
| Memory capacity :120programs,1200steps, | ||
| All repeat 999 cycles, part repeat 99 cycles | ||
| Interior material | Stainless Steel Plate(SUS 304) | |
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |
| Ambient Temp. | +5ºC~+35ºC | |
| Wiring method | AC220,50Hz ,1phase 2 wires +Ground Wires | |
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | ||
Standards implemented and met
1. GB11158 Technical conditions for high-temperature testing room
2. GB10589-89 Technical conditions for low-temperature testing room
3. GB/T10586-89 technical conditions for humidity testing room
4. GB/T2423.1-2001 testing methods for low-temperature
5. GB/T2423.2-2001 testing methods for high-temperature
6. GB/T2423.3-93 technical conditions for humidity testing room
7. GB/T2423.4-93 testing method for alternating hot and humid
8. IEC60068-2-1.1990 testing methods for low-temperature
9. IEC60068-2-2.1974 testing methods for high-temperature
10. GJB150.3 High-temperature test
11. GJB150.4 Low-temperature test
12. GJB150.9 muggy test
13. GB/T2423.22 temperature test
1. Dedicate touch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties
7. Japan imported UP-10D Seamless Welding Machine, especially for copper pipe welding
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Komeg has been the brand of Komeg Technology Industrial since 1990. We manufacture environmental simulation test equipment for quality-conscious customers. Our factory is located in Dongguan, covering an area of 5,000 square meters, with over 52 employees including 26 R&D engineers.
