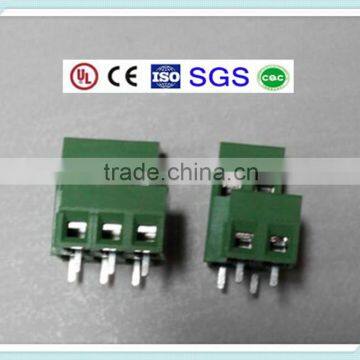

High and Low 128 Terminal Block 2 Way 3 Way KDG128 5.0mm 5.08mm Pitch 300V 12A

Character

1,Pitch:5.0mm/5.08mm

2,Terminal number:2P-24P

Material
1,Screws: M4 steel Ni plated
2,Pin header: Brass, Tin plated

3,Housing: Nylon

Electrical
1,Rated voltage: 300V
2,Rated current: 12A
3,Wire range: 24-12AWG
Mechanical
Temp. Range: -40ºC to +105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 0.3Nm (3.6lb.in)
Strip length: 6-7mm

  5.0mm 5.08mm Pitch 300V 12A PCB Mount 2 Pin Terminal Block Connector KDG126 Drawing:
