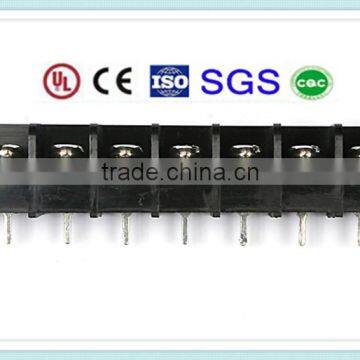

300V 25A 6.35mm 7.62mm 9.52mm Barrier Terminal Block Connector

FOB Price

Negotiable / Unit

1000 Units(Min. Order)

Port Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	XIONGSHI
Model Number	KDT45	Number of Contacts	11 - 20
Conductor Size	11 - 20 AWG	Type	Barrier

Product Description

Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm High and Low 2 Row Terminal Block with UL, CE, ISO, SGS,CQC Approved

Double Row Ladder Straight Pin Welding Terminal Block Connector, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm

Product Description

Terminal block


Approval	UL
Electrical
Rated voltage	300V/600V
Rated current	25A-300A
Wire range	22-12AWG
Withstand Voltage	AC2000V for 1 minute
Insulation Resistance	1000 mΩ / DC 500V
Materials
Plastic Housing	PBT, UL94V-0, Black
Operation Temperature	-40℃- +130℃
Terminal	Brass, Tin Plated
Screw	Steel, M3.5, Ni Plated
Torque Value	0.8N.m

Double Row Ladder Straight Pin Welding Terminal Block Connector , Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm

Double Row Ladder Straight Pin Welding Terminal Block Connector with Wire Hole and Without, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm

Straight Pin Welding Terminal Block Connector

Double Row Ladder Type Welding Terminal Block Connector with Angle Pin, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm

Double Row Welding Terminal Block Connector with Angle Pin, Model: KT4

Screw Double Row Ladder Type Electric Terminal with Cover, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm

Screw Double Row Ladder Type Electric Terminal with Straight Pin, Model: 2KDS, Pitch: 7.62mm; 3KDS, Pitch:9.525mm

Certificate: CE, UL, ISO9001-2008, SGS, CQC

Application:

Packaging & Shipping

Company Information

Beijing world Nayuan Technology Co., Ltd. was established in 2003, is a professional manufacturer of terminal blocks. The company has passed the SGS, CQC, CE, UL, ISO9001: 2008 quality system certification for the purpose of "quality first, reputation first" committed "to meet customer demand" production and operation mode.
Over the years, in order to improve product quality, our company was established by the professional and technical personnel, research and development institutions, plastic mold, punching mold, metal processing, injection molding, assembly of finished products and a series of specialized production plant. At present, our products have been widely sold at home and abroad.
Meet the needs of our customers, we also established a sales company, available quantities, sufficient supply, range, price. In order to better customer service, I also undertake a variety of products customized business models.
We warmly welcome your visit, visit!

Dear valued clients, thank you for your interests to our products. We have more than 10 years professional experience in terminal blocks fields. For more details, pls feel free to contact us.
