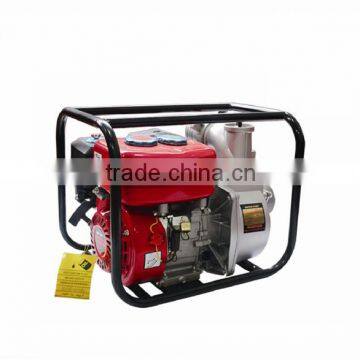

hand starting operation ce approved 3 inch kerosene water pump
- Ning bo / Shang hai
- T/T
You May Like
-
hand starting operation agricultural irrigation ce approved 2 inch kerosene water pump
-
hand starting operation agricultural irrigation 3 inch kerosene water pump
-
hand starting operation agricultural irrigation ce approved 3 inch kerosene water pump
-
Wp30k Agricultural Kerosene Water Pumps
-
168f AC output manual start gas generator home use
-
high quality homeuse 3 phase natural gas generator
Product Details
Place of Origin | Zhejiang, China | Brand Name | AODISEN | |
Model Number | GP50 GP80 GP100 | Theory | Centrifugal Pump | |
Structure | Single-stage Pump | Usage | Water | |
Power | Other, hose power | Standard or Nonstandard | Standard | |
Fuel | Other, kerosene | Pressure | Low Pressure | |
Application | Sewage |
Product Description
hand starting operation ce approved 3 inch kerosene water pump
1:muffler with low noise
2:recoil start
3:suction range 7m, lifting 25m
With self-made reliable engine and strict testing from spare parts to whole sets, AODISEN have superior durability with high perforance-price ratio, it is number one for your choice of centrifugal pump.
Characteristic
muffler with low noise
crank shaft options : cast iron / forged steel
high quality carburetor, crankcase and shining pump body
galvanized shining screw, A++ grade pistion
strong carton packing, inside lined with foam
Technical Data & Parameter for 3 inch kerosene water pump
Model | GP50K-1 | GP80K-1 |
Outlet Size(mm) | 50 | 80 |
Inlet Size(mm) | 50 | 80 |
Speed (rpm) | 3600 | 3600 |
Lift Head. max (m) | 30 | 30 |
Flow. max(m3/h) | 27 | 60 |
Suction(m) | 7 | 7 |
Maximum Power Output (HP) | 5.5 | 6.5 |
Engine Model | ZT168F | ZT168-1 |
Bore x Stroke (mm) | 68x45 | 68x54 |
Displacement (cc) | 163 | 196 |
Compresslon Ratio | 8.5: 1 | 8.5: 1 |
Maximum Power Output | 4.0kw/3600rpm | 4.8kw/3600rpm |
Recommended Power Using | 3.4kw/3600rpm | 4.0kw/3600rpm |
Maximum Torque | 10N. M/2500RPM | 11N. M/2500RPM |
Ignition System | Non-contact transistorized(TCL) | |
Engine type | Single cylinder, Air-cooled, 4-stroke, 25 inclined | |
Starting System | Recoil and hand-operated | |
Air Cleaner | semi-dry oil bath type | |
Fuel tank Capacity (L) | 3.6 | 3.6 |
Fuel Consumption(L) | ≤ 395g/kw/h | ≤ 395g/kw/h |
oil Capacity (L) | 0.6 | 0.6 |
run time per tankful @3/4 load | 2.6h | 2.6h |
Net Weight(kg) | 25/27 | 28/30 |
Dimensions LxWxH(mm) | 475x375x380 | 500x375x405 |
20GP/ 40HQ | 360pcs / 840 pcs | 330pcs / 840 pcs |
Real Shot
Taizhou Aodisen Machinery Co.,Ltd is a professional manufacturer and exporter of kinds of gasoline engine, diesel engines, gasoline generator, diesel generator, natural gas generator, gasoline water pumps, gasoline engine.
With high quality products, excellent services and a good reputation, we have won great support from customers around the world. Thus, our company scale has expanded.
We also offer all kinds of OEM / ODM services. Now our market covers Eastern Europe, South America, Middle East and Africa. We had established long-term, stable and good business relationships with many manufacturers and wholesalers around the world.
We are looking forward to even greater cooperation with overseas customers based on mutual benefits. Sincerely welcome to visit our factory.
Production Line
Testing
Sample Room
Our Factory
Our Workshop
Meeting With Our Customers
Aodisen offer 18moths after-sales service, If the problem is caused by our technology, we will be responsible for that, even we can send the replacement to your or send our engineer to your country if it is serious. If need and your quantity is large enough, we can send engineer to your country to help you with installment or teach you some maintenance knowledge and how to solve some problem that you frequently meet. For the parts, they will be sent out during 5days at most after receiving your request, OEM is available.
Q1: Are You Manufacturer or Trade Company ?
A: We are Manufacturer
Q1: What is Your MOQ ?
A: Engines: 100sets; Generator: 50sets; Water Pump: 100sets ;
Q2. What Is Your Price Terms?
A: EXW, FOB, CNF and CIF are available.
Q3. What Is Your Payment Terms?
A: T/T, L/C, Weston Union
Q4. What Is Your Delivery Time?
A: Usually 20 Working Days After Receiving Deposit
Q5. What Warranty Could You Provide?
A: Half and One Year Warranty for Free Spare Parts. And We Could Send Engineer To Your Side.
