Home > Products > LPG generator > stable performance portable single cylinder iso ce approved air-cooled gas generator set

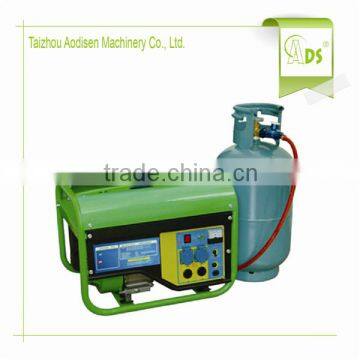

stable performance portable single cylinder iso ce approved air-cooled gas generator set

FOB Price

USD $257 - $258 / Piece

128 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	AODISEN
Model Number	ADS2500AG	Output Type	Other, single phase or single phase + 3 phase
Speed	3600rpm	Frequency	50 / 60HZ
Rated Power	2kw	Rated Voltage	110V/220V/230V/240V
Rated Current	8.3A

stable performance portable single cylinder iso ce approved air-cooled gas generator set

1: New type voltage meter & current meter with double protection panel

2: Light weight, compact structure, portable and easy to operate

3: Economical, low fuel consumption rate to ensure 8 hours running without refueling

4: Overload protection for safe running

5: Easy maintenance, suitable for camping, lighting and small hand tools

Technical Data & Parameter For

stable performance portable single cylinder iso ce approved air-cooled gas generator set

Generator	Rated A. C. output	1.5kW	1.8kW	2.0kW	2.5kW	2.8kW	4.0kW	5.0kW	6.0kW	7.0kW
	Max. A. C. output	1.8kW	2.0kW	2.2kW	2.8kW	3.0kW	4.5kW	5.5kW	6.5kW	7.5kW
	A. C. Frequency	50/60Hz
	Rated Voltage	220/110V
Engine	Engine Model	ZT-168F	ZT-168F	ZT-168F	ZT-170	ZT-177F	ZT188F	ZT188F	ZT190F	ZT192F
	Power	5.5HP	5.5HP	6.5HP	7.0HP	9.0HP	13.0HP	13.0HP	15.0HP	16.0HP
	Engine Type	Air-cooled; 4-stroke; OHV, Single Cylinder
	Ignition System	Transistor Magneto
	Starting System	Recoil/Electric						Electric
	Displacement Max. Output	163cc	163cc	196cc	210cc	270cc	389cc	389cc	420cc	460cc
	Max. Output	4.1kW	4.1kW	4.8kW	5.1kW	5.1kW	9.6kW	9.6kW	11kW	12kW
	Fuel Tank Capacity	15L	15L	15L	15L	15L	25L	25L	25L	25L
	Continuous Operating Time	13h	13h	13h	12h	10h	10h	10h	8h	8h
	Min. Fuel Consumption	360g/kW.h	360g/kW.h	360g/kW.h	360g/kW.h	360g/kW.h	360g/kW.h	360g/kW.h	360g/kW.h	360g/kW.h
	Noise Level	65dB	65dB	65dB	67dB	69dB	74dB	74dB	78dB	78dB
	Lube. Oil Capacity	0.6L	0.6L	0.6L	0.6L	0.6L	1.1L	1.1L	1.1L	1.1L
Size & Weight	Dimension(LxWxH)(mm)	605x445x450	605x445x450	605x445x450	605x445x450	605x445x450	695x525x545	695x525x545	695x525x545	695x525x545
	Loading Qty: 20GP/40HQ	240/485pcs	240/485pcs	240/485pcs	240/485pcs	240/485pcs	128/272pcs	128/272pcs	128/272pcs	128/272pcs
	Net Weight	39kg	39kg	40kg	43kg	45kg	81kg	82kg	83kg	85kg

Production Line

Testing

Sample Room
