Home Use High Quality 10 hp Engine With ce
- Ningbo / Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Usage | Other, Boat, Sprayer, Generator, Water Pump | |
| Fuel | Gasoline | Stroke | 4 Stroke | |
| Cylinder | Single Cylinder | Cold Style | Other, Air-cooled | |
| Start | Other, Kich Start & Electric Start | Place of Origin | Zhejiang, China | |
| Brand Name | AODISEN | Model Number | ADS160 / ADS200 | |
| Dimension(L*W*H) | 375*330*342mm | Weight | 15kgs | |
| Certification | ISO9001:2008 | Warranty | 1 year | |
| After-sales Service Provided | No overseas service provided |
Product Description
home use high quality 10 hp engine with ce
Item no: Ads 160
1:Large fuel tank capacity
2:High quality power output
3:Qualified mechanical seal device
Technical Data & Parameter for
10 hp engine :
| Model | ADS160 | ADS200 | ADS390 |
| Description | General Purpose Mini Small Petrol Engine | General Purpose Mini Small Petrol Engine | General Purpose Mini Small Petrol Engine |
| Engine Type | 25° Inclined Single Cylinder, 4 stroke, OHV, Horizontal Shaft, Forced Air-Cooling | 25° Inclined Single Cylinder, 4 stroke, OHV, Horizontal Shaft, Forced Air-Cooling | 25° Inclined Single Cylinder, 4 stroke, OHV, Horizontal Shaft, Forced Air-Cooling |
| Cylinder Dia. × Stroke | 68 ×45mm | 68mm × 54mm | 88mm ×64mm |
| Displacement | 163ml | 196ml | 389ml |
| Compression Ratio | 8.5:1 | 8.5:1 | 8.0:1 |
| Max Power Output | 5.5hp | 6.5hp | 13hp |
| Rated Power Output | 4.85hp | 5.8hp | 11.7hp |
| Max. Torque | 10.8N.M / 2500rpm | 13.2N.M / 2500rpm | 26.5N.M / 2500rpm |
| Ignition Mode | Non-Contact Transistor Magneto | Non-Contact Transistor Magneto | Non-Contact Transistor Magneto |
| Starting Mode Options | Recoil / Electric | Recoil / Electric | Recoil / Electric |
| Engine Oil Capacity | 0.6L | 0.6L | 1.1L |
| Fuel Capacity | 3.6L | 3.6L | 6.5L |
| Recommended Fuel | unleaded gasoline | unleaded gasoline | unleaded gasoline |
| Recommended engine oil | SAE 10W-30 | SAE 10W-30 | SAE 10W-30 |
| Fuel Consumption Rate | 360g / kw.h | 360g / kw.h | 325g / kw.h |
| Carburetor Type | Float Carburetor | Float Carburetor | Float Carburetor |
| Fuel Suppling Mode | Gravity Feed | Gravity Feed | Gravity Feed |
| Lubrication Mode | Splashing | Splashing | Splashing |
| Power Output Form | crank shaft 1:1 | crank shaft 1:1 | crank shaft 1:1 |
| Output End of Crank Shaft | Metric Thread / British Thread / Keyslot | Metric Thread / British Thread / Keyslot | Metric Thread / British Thread / Keyslot |
| Crank Shaft Rotation Direction | Clockwise (view from flywheel) | Clockwise (view from flywheel) | Clockwise (view from flywheel) |
| Air Filter Type | Semi-Dry / Oil Bath / Semi-Dry+Oil Bath | Semi-Dry / Oil Bath / Semi-Dry+Oil Bath | Semi-Dry / Oil Bath / Semi-Dry+Oil Bath |
| Dimension | 375*330*342mm | 375*330*342mm | 465*410*455mm |
| N.W./G.W. | 15kgs / 16kgs | 15kgs / 16kgs | 31kgs / 33kgs |

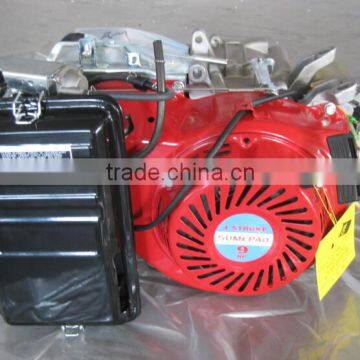

Real Shot For
10 hp engine :
Model ADS160 For Generator Set
Model ADS200 For Water Pump
Model ADS200 For Generator Set
Model ADS390 For Water Pump
Model ADS390 For Generator Set
Taizhou Aodisen Machinery Co.,Ltd is a professional manufacturer and exporter of kinds of gasoline engine, diesel engines, gasoline generator, diesel generator, natural gas generator, gasoline water pumps, gasoline engine.
With high quality products, excellent services and a good reputation, we have won great support from customers around the world. Thus, our company scale has expanded.
We also offer all kinds of OEM / ODM services. Now our market covers Eastern Europe, South America, Middle East and Africa. We had established long-term, stable and good business relationships with many manufacturers and wholesalers around the world.
We are looking forward to even greater cooperation with overseas customers based on mutual benefits. Sincerely welcome to visit our factory.
Production Line
Sample Room
Stock
Our Factory
Container Loading
Our Certificates
Meeting with our customers
Aodisen offer 18moths after-sales service, If the problem is caused by our technology, we will be responsible for that, even we can send the replacement to your or send our engineer to your country if it is serious. If need and your quantity is large enough, we can send engineer to your country to help you with installment or teach you some maintenance knowledge and how to solve some problem that you frequently meet. For the parts, they will be sent out during 5days at most after receiving your request, OEM is available.
Q1: Are You Manufacturer or Trade Company ?
A: We are Manufacturer
Q1: What is Your MOQ ?
A: Engines: 100sets; Generator: 50sets; Water Pump: 100sets ;
Q2. What Is Your Price Terms?
A: EXW, FOB, CNF and CIF are available.
Q3. What Is Your Payment Terms?
A: T/T, L/C, Weston Union
Q4. What Is Your Delivery Time?
A: Usually 20 Working Days After Receiving Deposit
Q5. What Warranty Could You Provide?
A: Half and One Year Warranty for Free Spare Parts. And We Could Send Engineer To Your Side.
