SZ-600W Super rate horizontal flow Reciprocating pillow machine,packaging

Condition	New		Function	Wrapping
Application	Food, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles		Packaging Type	Bags, Film, Foil, Belt, Pouch, Capsule, Other, Bags, Film, Foil, Belt, Pouch, Capsule, package
Packaging Material	Plastic		Automatic Grade	Automatic
Driven Type	Electric		Voltage	220V
Power	3.6W		Place of Origin	Guangdong, China
Brand Name	SUK		Model Number	SZ-600W
Dimension(L*W*H)	4830x970x1500		Certification	CE
After-sales Service Provided	Overseas third-party support available

Specifications

1. packaging various kinds of regular objects like biscuits, etc.
2. high packing rate
3. ease to operate

FOSHAN SUK Packing Machinery Co.,Ltd is a professional packaging machine manufacturer with 5 years' experience in China. We offer over 18 various kinds of packaging machines and our monthly output amounts to more 100 sets. We will supply you a high quality packing machine and a resonable price .Hoping to be your reliable parter in China.





Packing material: Heat-sealable laminated film, such as: OPP,PE,PVC,PT/PE,OPP/CPP ,other special sealable packing film.

Sealing Type: Back-sealed (3 sides sealed)





 SZ- 600W Super rate horizontal flow Reciprocating pillow  machine,packaging

I. Main performance and structure features



1. Dual frequency conversion control ,bag length can be set and cut  in one step,saving time and films.

2. Colorful touch screen,easy and quick setting and operation.



3. Self diagnosis failure function,clear failure diaplay.



4. High sensitivity photoelectric eye color trace the bag,numerical input of cutting sealing position for extra accuracy.



5. The temperature of each seal is independent. PID control is suitable to various packaging materials.



6.Recoprocating type sealing device,filmer sealing,no wasting in mould sealing cutter.



7.Teminal sealing device,more beautiful bag shape,improving products level.



8. Positioning stop function without sticking knife, cutting and wasting envelope.



9. Simple driving system,reliable working,convenient maintenance.



10. All controls are implemented by software. It can install intermittent air device and spray alcohol device to implement adjusting functions immediately and upgrading technology to ensure it will never fall behind.



II. Application



Suitable for packing regular object with inserting angles like,biscut,pies,mooncakes,noodles,daily commoditiles,paper tissues,female sanitary towels,industrials parts,paper box,trays,etc.



 III. Optional configuration



1. code machine 2. straight lines in the code printerseal round   3.reticualte end seal mourld 4.7-inch touch screen.



IV. Specification







  V. Electric detailed list:



No.	Product Name	Brand
1	PLC	Panasonic/Japan
2	INVERTER	Schneider
3	7 inchTouch screen	Wei Lun/Taiwan
4	Intermediate Relay	OMRON
5	Switching power	Meanwell/Taiwan
6	solid state relay	Schneider
7	Temperature controller	Yatai/Shanghai
8	Photoelectricity colour code	Aiset

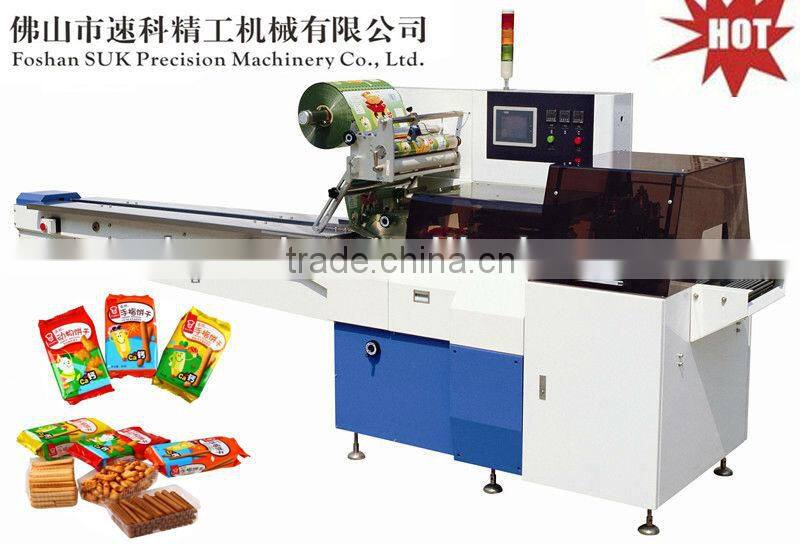

Machine pictrues:





















Effect of packing :

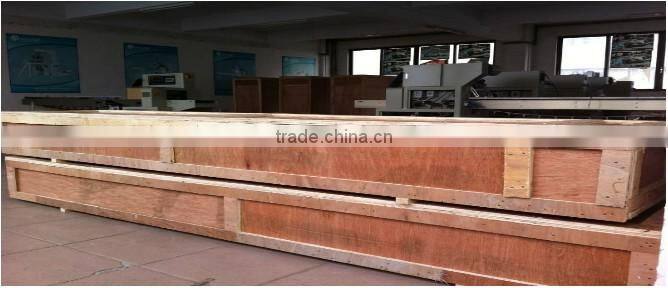

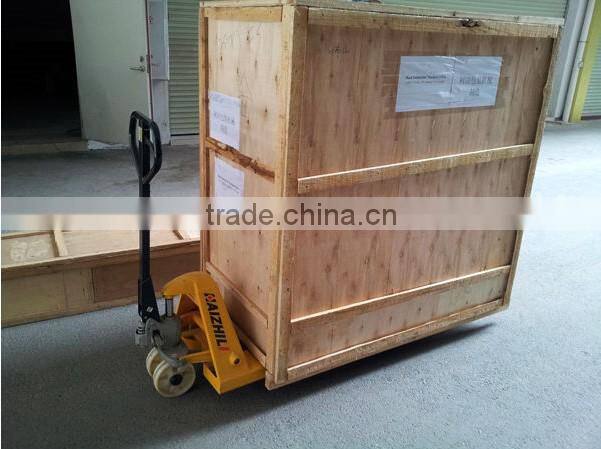

  Wooden packaging :

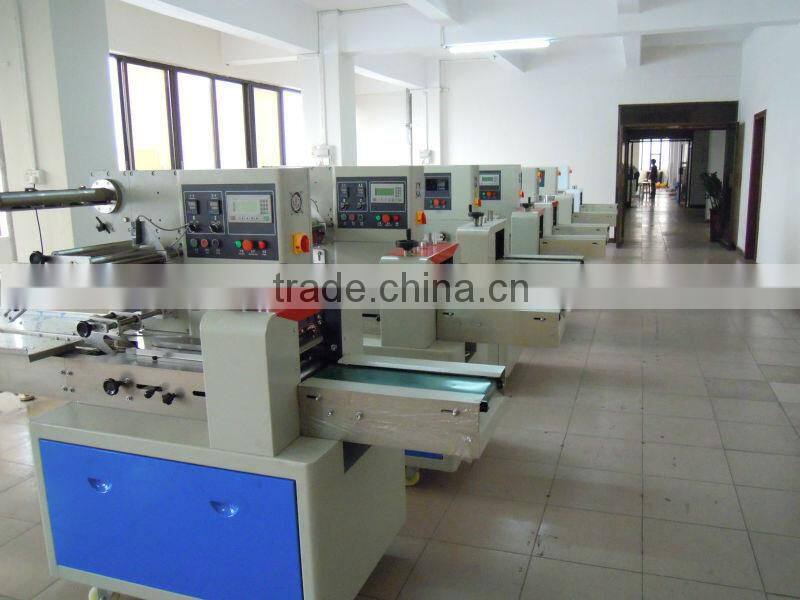

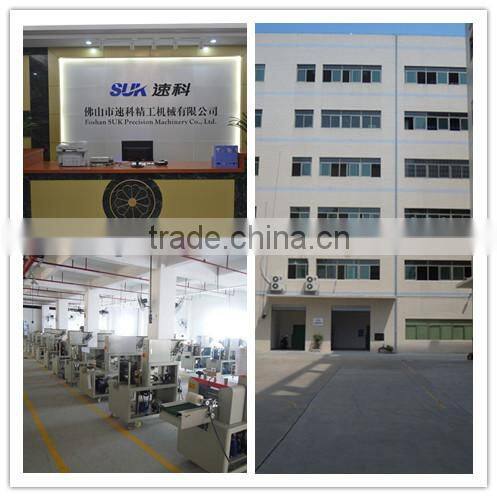

 workshop:
