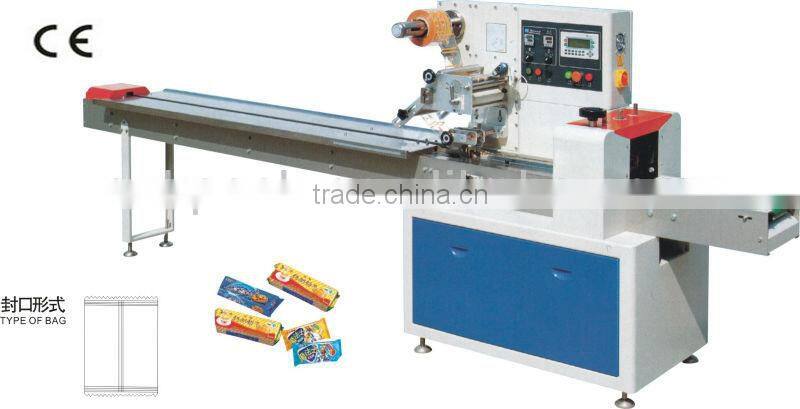

Automatic Pesticide Pillow Packing Machine SZ-250B

Condition	New		Function	Wrapping, Laminating, Capping, Coating, Sealing, Boxing
Application	Food, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles		Packaging Type	Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule
Packaging Material	Plastic		Automatic Grade	Automatic
Driven Type	Electric		Voltage	2.4KW
Power	220V		Place of Origin	Guangdong, China
Brand Name	SUK		Model Number	SZ-250B
Dimension(L*W*H)	(L)3770X(W)670X(H)1450mm		Certification	CE
After-sales Service Provided	Overseas service center available

Specifications

Speciations of automatic pesticide pillow packing machine SZ-250B
1. easy to operate
2. high quility ang good price
3. CE

Application of Automatic pesticide pillow packing machine SZ-250B

Suitable for packing regular objects such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.

1.easy to operate
2.high quility ang good price
3. CE certification



Optional device of Automatic pesticide pillow packing machine SZ-250B

1. Code applying machine
2. line sealing wheel
3. Moire terminal sealing mould
4. Extra big screen



Main performance & structure characteristics( Automatic pesticide pillow packing machine SZ-250B):

1. Double converters control bag length which can be set and cut. There is no need to adjust empty which will be prompted automatically by the humanized operation, saving time and membrane.

2. Master control circuit adopts imported single-chip microcomputer with man-machine interface and frequency control, making setting parameters convenient and quick and operation intuitive.Fully implement the humanized automatic operation.

3. Digital fault self-diagnosis function.Fault diagnosis is clear at a glance

4. Packing speed and bag length adopts dual frequency conversion control, digital sealing and cutting position input. The sealing and cutting position is precise, beautiful and solid.

5. Highly sensitive photoelectric device tracks automatically and accurately.

6. Positioning stop function without sticking knife, cutting and wasting envelope.

7.Double frequency contracted mechanical structure with less worn, easy maintenance and long life.

8. The temperature of each seal is independent. PID control is suitable to various packaging materials.

9. All controls are implemented by software. It can install intermittent air device and spray alcohol device to implement adjusting functions immediately and upgrading technology to ensure it will never fall behind.





Tye	SZ-250B	SZ-250D	SZ-250E(3blades)	SZ-250S(4blades)
Film width	Max.250mm		Max.180mm
Bag length	65-190 or 120-280mm	90-220mm	50-115mm	45-90mm
Bag width	30-110mm		30-80mm
Product height	Max.40mm	Max.55mm	Max.35mm
Film roll diameter	Max.320mm
Packaging rate	40-230bag/min		60-330bag/min
Power	220v 50/60Hz 2.4KW		220v 50/60Hz 2.8KW
	(L)3770×(W)670×(H)1450mm
Machine weight	600kg
Remarks	Optional air filling device





Electric detailed list:

No.	Product Name	Brand
1	PLC	Panasonic/Japan
2	INVERTER	Schneider
3	7 inchTouch screen	Wei Lun/Taiwan
4	Intermediate Relay	OMRON
5	Switching power	Meanwell/Taiwan
6	solid state relay	Schneider
7	Temperature controller	Yatai/Shanghai
8	Photoelectricity colour code	Aiset



Quality Control:

Two different quality controlling way.
1. Factory quality self test.
Have person who is in charge of testing machine with customer's materials.
2. Customer's quality testing
Take video of machine testing, then send to customer, also we keep record.

Basic Service:

1.Technical support

2.Loading inform

3.Video for debugging

4.Customer's require is welcome

5. Free training, Free 1 year warranty
