SZ-250D High Speed Pillow Packaging Machine

Condition	New		Function	Wrapping
Application	Food, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles		Packaging Type	Bags, Film, Foil, Belt, Pouch, Capsule, Other, Bags, Film, Foil, Belt, Pouch, Capsule, package
Packaging Material	Plastic		Automatic Grade	Automatic
Driven Type	Electric		Voltage	220V
Power	2.4W		Place of Origin	Guangdong, China
Brand Name	SUK		Model Number	SZ-250D
Dimension(L*W*H)	3770x670x1450		Certification	CE
After-sales Service Provided	Overseas third-party support available

Specifications

1. packaging various kinds of regular objects like biscuits, etc.
2. high packing rate
3. ease to operate

FOSHAN SUK Packing Machinery Co.,Ltd is a professional packaging machine manufacturer with 5 years' experience in China. We offer over 18 various kinds of packaging machines and our monthly output amounts to more 100 sets. We will supply you a high quality packing machine and a resonable price .Hoping to be your reliable parter in China.





Packing material: Heat-sealable laminated film, such as: OPP,PE,PVC,PT/PE,OPP/CPP ,other special sealable packing film.

Sealing Type: Back-sealed (3 sides sealed)





SZ- 250D High speed pillow packaging machine



I. Main performance and structure features

1. Double transducer control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.

2.  human-machine operation, convenient and quick parameter setting.

3.Self diagnosis failure function, clear failure display.

4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.

5. Separate PID control to temperature, suitable for various packing materials.

6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.

7. Simple driving system, reliable working, convenient maintenance.

8. .All the controls are achieved by software, convenient for function adjusting and upgrading.



II. Application

Suitable for packing regular objects such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.



III. Optional device

1. Code applying machine

2. Extra big screen



IV. Specification



Model	SZ-250D
Film width	Max.250mm
Bag  length	90~220mm
Bag  width	30~110mm
Product height	Max. 55mm
Film roll diameter	Max.320mm
Packing speed	40~230 bag/min
Power supply	220V,50/60HZ,2.4KVA
Size	(L)3770X(W)670X(H)1450mm
Weight	600Kg
Remarks	Optional air filling device

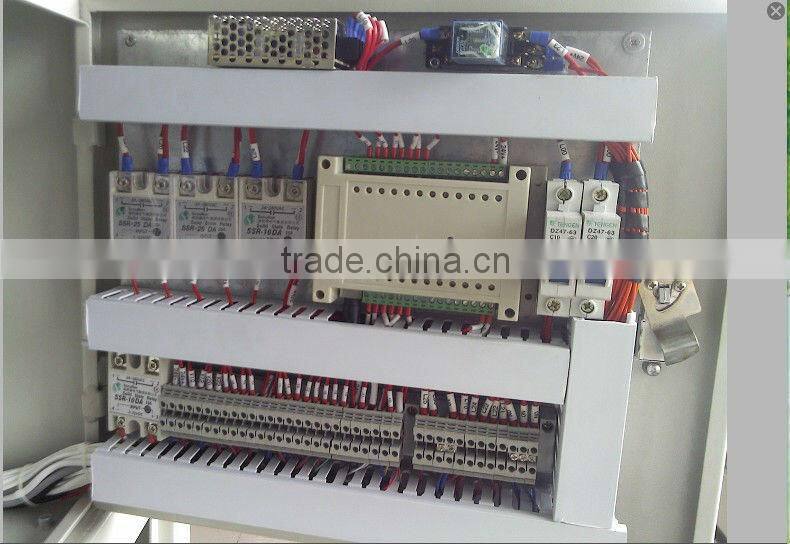

  V. Electric detailed list:



No.	Product Name	Brand
1	PLC	Panasonic/Japan
2	INVERTER	Schneider
3	7 inchTouch screen	Wei Lun/Taiwan
4	Intermediate Relay	OMRON
5	Switching power	Meanwell/Taiwan
6	solid state relay	Schneider
7	Temperature controller	Yatai/Shanghai
8	Photoelectricity colour code	Aiset

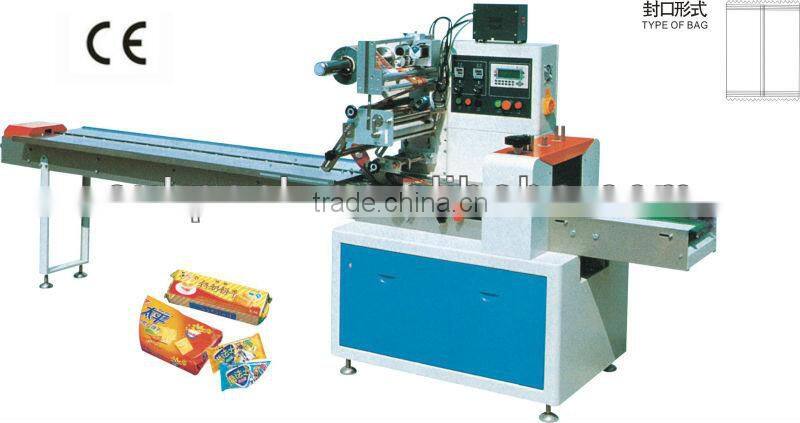

Machine pictrues:

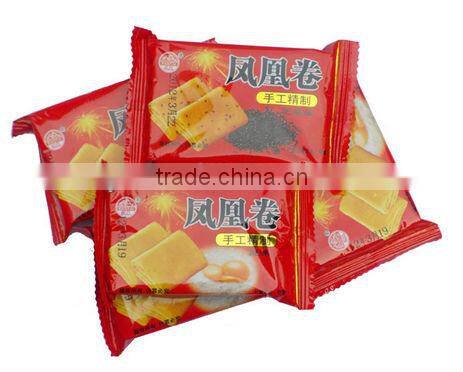

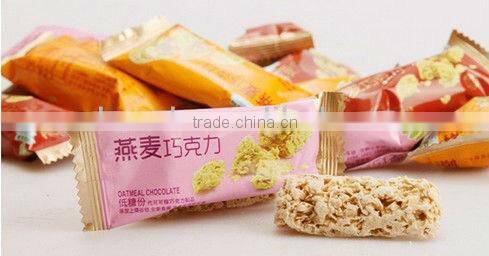

Effect of packing :















  Wooden packaging :





workshop:
