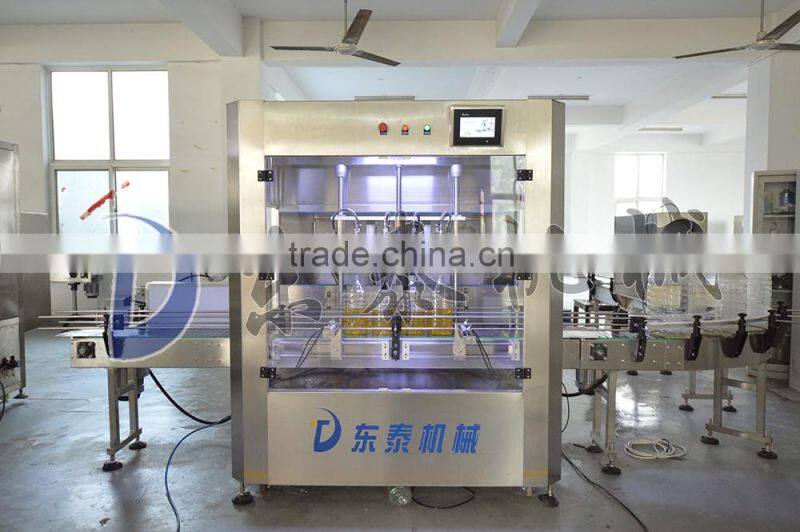

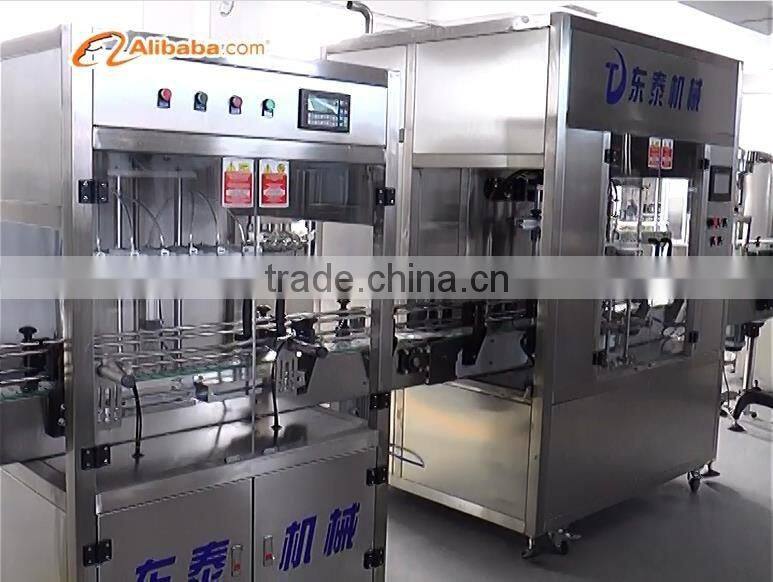

Big Barrel Cooking Oil Filling Machine

Product Name: Big Barrel Cooking Oil Filling Machine

Model: ZLDG-4  Automatic Oil Filling Machine

Introduction:
Scope of application:
big barrel cooking oil filling machine is widely used in filling a variety of oils and viscous liquids, such as peanut oil, blend oil, rapeseed oil and other edible oil filling.

Technical parameters of Big Barrel Cooking Oil Filling Machine
Filling speed: 700-1000 (barrels / hour)
Filling capacity: 1-5L & 5L-20 L
Filling accuracy: ± ≤ 0.3% FS
Power Supply: 220/380V 3 phase +Earth Wire, 50 Hz
Pressure: 0.5-0.8Mpa
Humidity: <98 %
Ambient temperature: 0~40°C

Principle Features of Big Barrel Cooking Oil Filling Machine
1.Automatic temperature-compensated system.

2.The accuracy of filling: instead of the tranditional computing type of flowmeter -- through pulse generator, now the big barrel cooking oil filling machine is promoted by our company, adopting rotary encoder is more accurate.

3. Adopting frequency converter to adjust the speed of filling, the efficiency highly raised. The speed can be arbitrarily adjusted on panel.
4.Touchscreen.Like this each filling head’s speed of machine can be set on touchscreen.
6.Conveyor belt be adjusted by frequency conversion

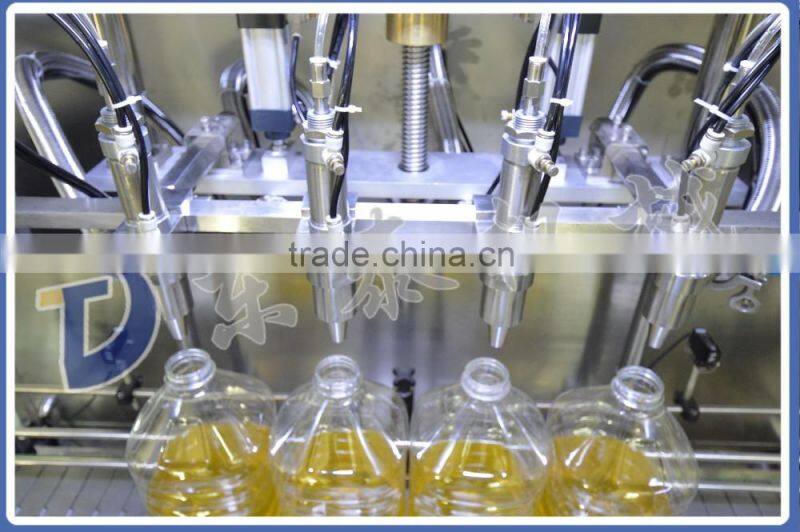

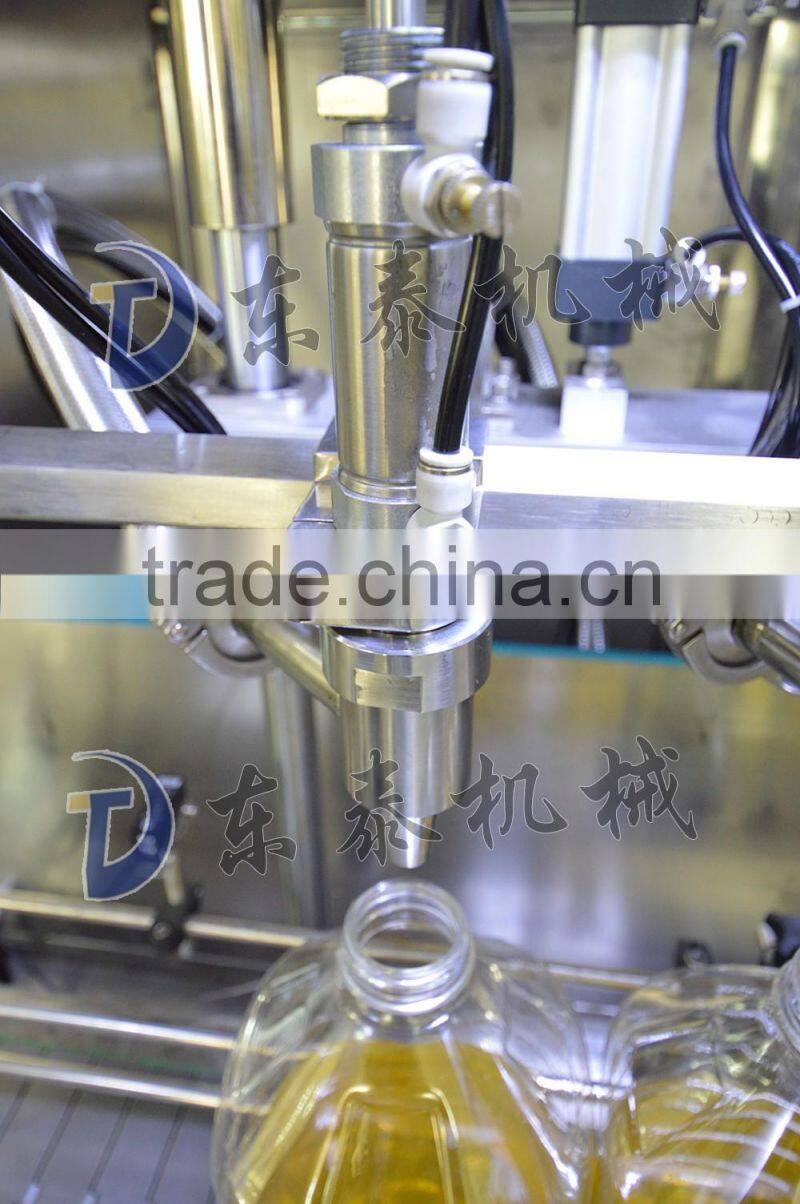

7. Adopt export grade manufacturing technology, high-end manufacturing materials, the most advanced stainless steel anti-drip filling head, and the domestic and accessories from most corporate reputation of quality assurance, so that the cleaning is easier and faster.

8.Filling volume is from the original 1-5L to be upgraded to 1-20L, covering 99% of the market, filling specifications. This is the only Dongtai Machinery allows you to only one machine will be able to enjoy the experience of filling capacity.
9. A buffered arc design, with reduced staff during the operation because of the bump and corner design phenomenon appears injured, more beautiful.
10. Oil return device from the original to the original plastic sanitary stainless steel metal hoses, make oil more hygienic, cleaning more convenient.
11. 304 stainless steel (OR 316 )hexagonal metal durable, better fixed filling head, filling head is easy to send the perfect solution to the problem first, simple operation, greater stability.
12.Suction device to move from the inside of the fuselage outer side of the machine, all-glass design, more convenient to observe, absolutely solid, no need to worry.
13.Filling head side to increase visible light, under any situation clear observation of the filling process, the use of LED lights design, bright, energy saving, safety, long life.
Machine stand above 30 °, slightly inclined user-friendly design, built a screen brightness adjustment, observe more clarity

Standard Export Packing for Big Barrel Cooking Oil Filling Machine

A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.

          Welcome to JINAN DONGTAI

    Jinan Dongtai Machinery Manufacturing Co., Ltd.

      Our Jinan Dongtai Workshop

For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.

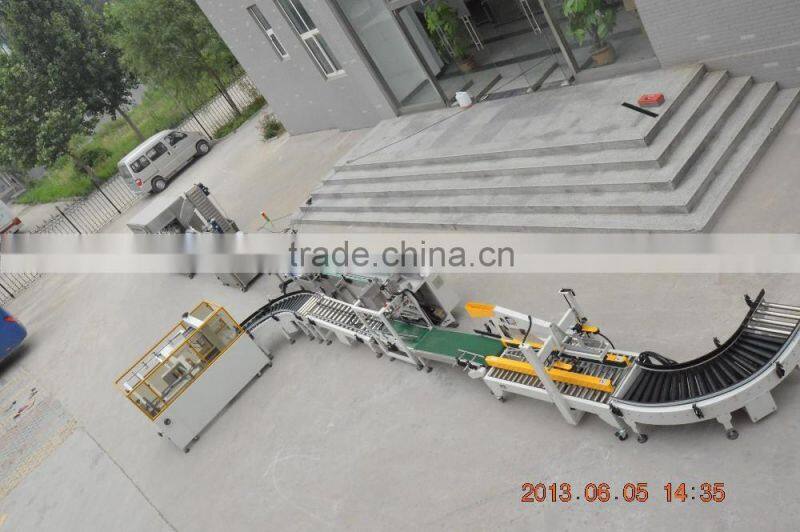

Filling production line included: Filling Machine + Capping Machine + Labeling Machine + Coding Machine + Shrinking Machine + .......
