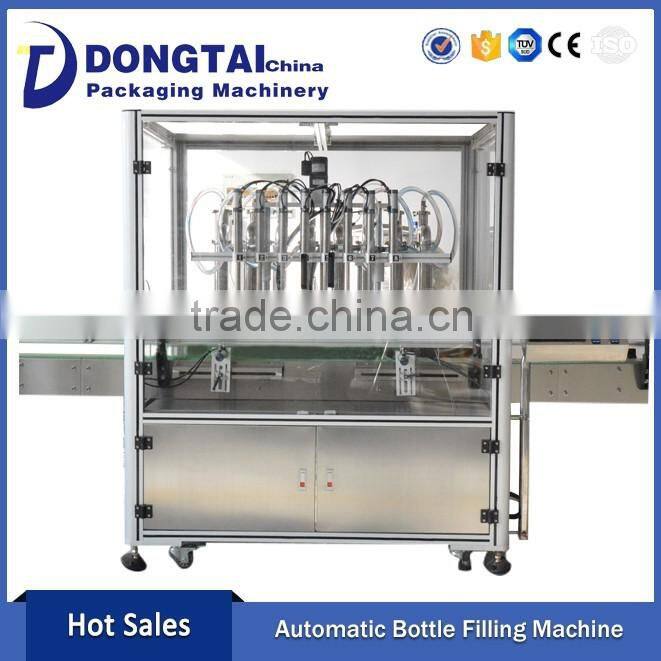

Filling Machine for Olive Oil

Product Name: filling machine for olive oil

Product Description
Machine: filling machine for olive oil

Model: SYFM-6 filling machine for olive oil

filling machine for olive oilIntroduction:
filling machine for olive oil is a kind of automatic liquid filling machine, you can called automatic liquid filling machine with 6 nozzles, it can be used in filling and packaging various liquid, sauce, oil, essential oil, etc. The filling materials can be viscous or non-viscous liquid,etc.

filling machine for olive oil Application Scope
This series of filling machine for olive oil is widely used in filling a variety of oils and viscous liquids, such as peanut oil, blend oil, rapeseed oil and other edible oil filling.


Parameters of filling machine for olive oil
Filling speed: 1500-1800 (barrels / hour)
Filling capacity: 1-6L/ 0.1-1L/ >6L
Filling accuracy: ± ≤ 0.3% FS
Power Supply: 220/380V 3 phase +Earth Wire, 50 Hz
Pressure: 0.5-0.8Mpa
Humidity: <98 %
Ambient temperature: 0~40°C


filling machine for olive oil Features:
1. filling machine for olive oil can be customized and be adjusted in dosage, this kind of bottled hemp seed oil filling machine is convenience and quick.
2. The volume of filling machine for olive oil only need to be set on the touchscreen directly.
3. Considered that the oil is different in density in the different temperature, resulting in the volume setting different, we have added an automatic temperature-compensated system.
4. The accuracy of filling machine for olive oil can be instead of the tranditional computing type of flowmeter -- through pulse generator, now promoted by our company, adopting rotary encoder is more accurate.
5. our filling machine for olive oil is adopting frequency converter to adjust the speed of filling and this series of filling machine for olive oilis highly raised about the efficiency.
6. The speed offilling machine for olive oil can be arbitrarily adjusted on panel.
7. The adjustment of filling accuracy, promoted by our company, the weight of filling can be set on the touchscreen.The filling machine for olive oil carries on automatic conpensation system when error occurs.
8. Each filling head’s speed can be set on touchscreen.
9. Conveyor belt of filling machine for olive oil can be adjusted by frequency conversion.


filling machine for olive oil Device Configuration:
The main engine is made of stainless steel.
The parts in contact with material is made of 304 stainless steel.
Janpan Keyen Ce sensor
France Schnaid relay element
Taiwan Airtac pneumatic element
Mitsubishi PLC and frequency converter

Standard Export Packing for filling machine for olive oil

A.Cover by PVC film + fumigated wooden case;
B.Wooden case suitable for long distance ocean shipping.

          Welcome to JINAN DONGTAI

    Jinan Dongtai Machinery Manufacturing Co., Ltd.

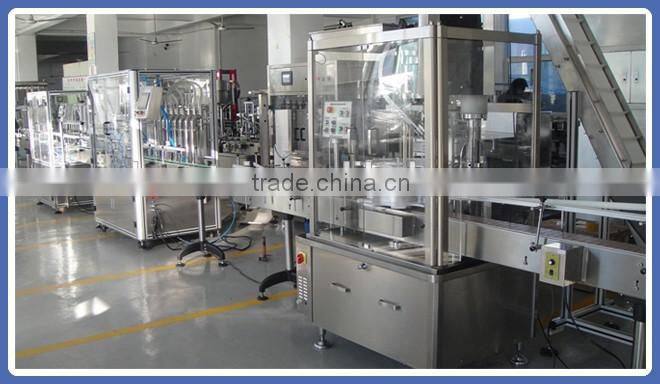

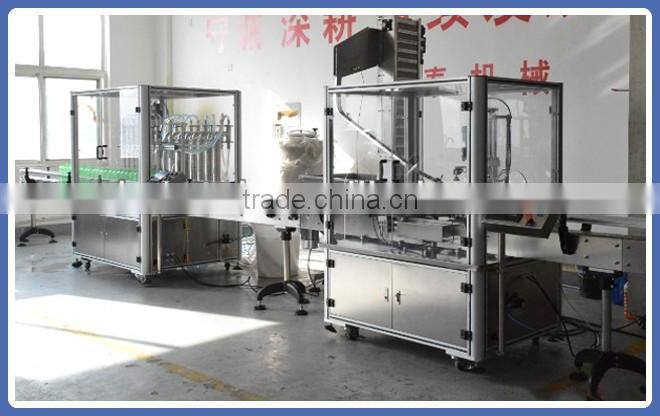

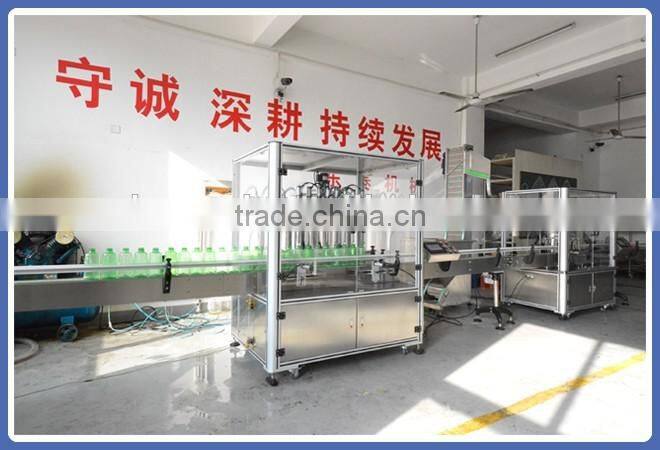

      Our Jinan Dongtai Workshop

For many years, we have devoted great efforts on researching and developing products under DONGTAI & XUNJIE brand, making remarkable quality, especially in filling machine and packaging machine.

Filling production line included: Filling Machine + Capping Machine + Labeling Machine + Coding Machine + Shrinking Machine + .......
