Home > Products > DC MMA INVERTER WELDER > DOUBLE VOLTAGE DC MMA ARC PORTABLE INVERTER WELDING MACHINE

DOUBLE VOLTAGE DC MMA ARC PORTABLE INVERTER WELDING MACHINE

FOB Price

US$ 100 - 135 / Piece

10 Pieces(Min. Order)

Port NINGBO/SHANGHAI
Payment TermsT/T D/P D/A Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	eDON welding machine	Model Number	welding machine(ZX7-250T)
Arc Current	10A-250A	Pulse Frequency	50HZ-60HZ
Pilot Arc Current	10A-215A	Rated Duty Cycle	60%
Motor Type	DC Motor	Dimensions	320160250
Usage	DIY , welding metal	Voltage	220V&380V
Power(W)	5.4KVA	Certification	CE, ISO9001
Warranty	12 months	After-sales Service Provided	Overseas service center available

Product Description

DOUBLE VOLTAGE DC MMA ARC PORTABLE INVERTER WELDING MACHINE

Product Description

Modern IGBT inverter power source.Two Option 250A and 315A
Unique Design

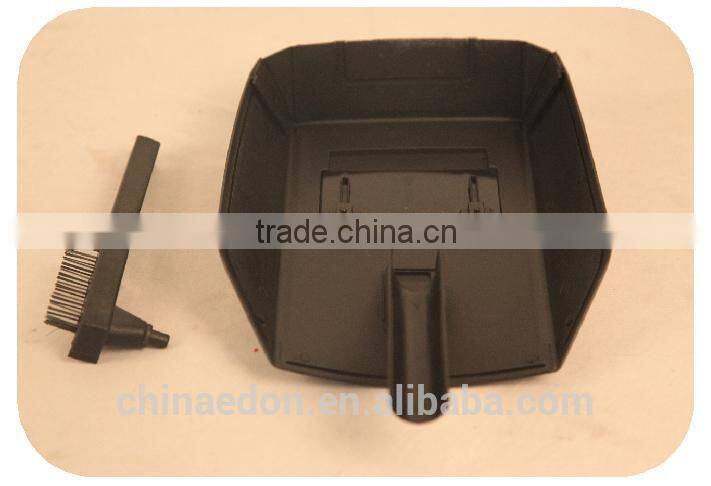

Accessories

Accessories:

1.2m cable with earth clamp

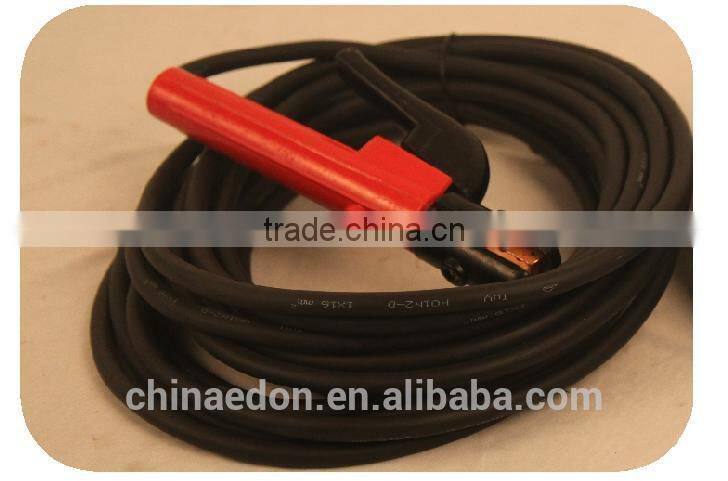

1.8m calbe with electrode holder

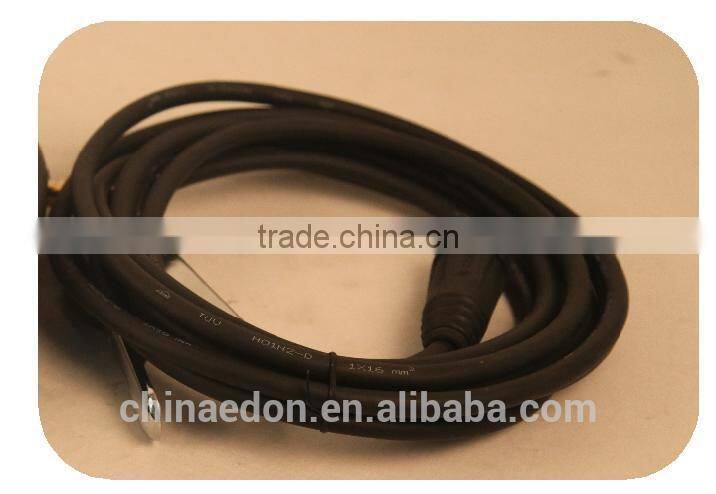

1.8m power cable

Technology

Item	ZX7-250T	ZX7-315T	ZX7-400T
Input voltage(V)	Single phase 220V/380V	Single phase 220V/380V	Single phase 220V/380V
Frequency(HZ)	50/60HZ	50/60HZ	50/60HZ
No-load voltage(V)	70±5/62±5	70±5/62±5	65±5/58±5
Rated input capacity(KVA)	5.4	7.1	7.1/9.5
Rated output voltage(V)	20.4-26.4	20.4-28	20.4-28/20.4-30
Output current range(A)	20~160	20~200	20~200/20-250
Duty cycle(%)	60	60	60
Usable electrode(MM)	1.6-3.2	1.6-4.0	1.6-5.0
Efficiency(%)	85	85	85
Power factor	0.93	0.93	0.93
Insulation class	F	F	F
Protection class	IP21S	IP21S	IP21S
Weight(KGS)	6.5	7.14	12.1
Dimension(MM)	500250355	520270385	520270385

Packaging & Shipping

Packing for welding machine * Standard exported carton or color carton.

We can use standard exported package if no special requirments, but it is available to provide color package according to your design or we can make design for you with your brand basing on the quantity more than 300pcs

Our Services

OEM:

Available

Delivery time:

If there are in stock, the goods can be deliveried within 1~5 working days after received the payment. Others depend on the order quantity.

Payment:

T/T, Western Union, L/C are accepted.

Gurantee and aftersale servieces:

* 1 year warranty for all the items

* 0.5%-1% free spare parts will be provided for repairment.

* Maintenance manual

* 24 hours support by e-mail

* For Large Order, Engineer can be sent to your country for on-site maintenance instructions

Quality & Inspection

* Cooperated with good reputation suppliers.

* 100% check spare parts quality which produced from matching suppliers.

* QC checking each step from spare parts to production on the full of line

Package:

* Standard exported carton or color carton.

* Blow molding package are available.

* We will use standard exported package if no special requirments, but it is available to provide color package according to your design or we make design for you using your brand basing on the quantity more than 200pcs.

Certifications:

CE, CCC, ISO9001

Company Information

Zhejiang Edon Mechanical & Electrical Co., Ltd., founded in September 2001, is a high-tech enterprise integrating R&D, production, sales and service of electric welders, air compressors and single-phase and three-phase asynchronous motors. The three production bases have a total floor area of 50,000 square meters. There are 200-odd sets of high-precision production and inspection equipment and more than 600 employees including over 20 senior managers, 15 engineers and over 30 technicians. The production capacity of electric welders takes the lead. Our company annually yields more than 400,000 inverter welding machines and DC welders and over 150,000 AC arc welders. There is a complete variety of electric welders including ZX7 manual arc welding machines, TIG argon arc welding machines, CUT plasma cutting machines, WSE AC and DC argon arc welding machines, NBC carbon dioxide gas shielded welding machines and moving-iron and tapped AC arc welding machines. Our products are used by customers in six continents except Antarctica and the independent brand occupies more than 80% market share.

Our company always insists on the policy of “People Foremost, Science and Technology Constitute a Primary Productive Force” and the tenet of “Survival by Quality, Customer by Credit”, and wins favor of customers. The production capacity is doubled year by year. In 2011, our company was awarded Wenling “Key Industrial Enterprise” and “Enterprise with Standard Import and Export Trade”. Through the efforts made in 2011 and the first half of 2012 coupled with the support and cooperation of dealers, our company responds to the national call, and eliminates the backward and high energy-consuming products. The high-efficiency and energy-saving inverter DC welders account for more than 60% of our products. Our company will grasp market trend, keep up with the industry development trend, increase the core competitiveness, carry out the strategies of “standardization”, “systematization” and “internationalization”, promote development and develop into a large modern enterprise with excellent service, the modern enterprise system and harmonious and sustainable development. Guided by the concept of “Concerted Efforts, Success Sharing, Sustainable Operation”, our company serves the welder industry by virtue of superior-quality products and solid technical force. We will become an outstanding enterprise in the industry through the unremitting efforts of all staff. Welcome new and old customers at home and abroad to visit for cooperation and brilliance.

Our company will be your best choice!
