metal cutting controller

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	start shaphon
Model Number	SH-2200H

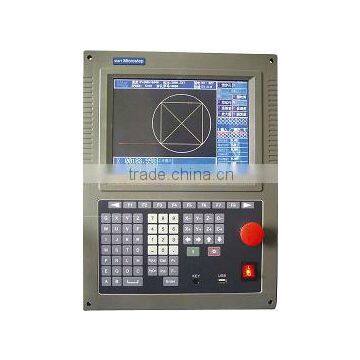

metal cutting controller
1.ARM chip
2.10.4"color display screen
3.integrated keyboard panel
4.20-year cutting experience

metal cutting controller SH-2200H

1. Industrial ARM process core, large-scale gate array hardware interpolator

2. 10.4" true color LCD display

3. Internal caching preprocessing technology ensures processing continuity

4. Freely shift cutting technology between plasma and flame by one key

5. Embeded features of cutting industry. Automatic ignition

6. New algorithm and small line smoothing functions

7. Stable and continuous process. No pause between program segments

8. Help's menu with full function prompt. Direct and easy to learn

9. Set acceleration or deceleration at will

10. Newly added arc voltage torch height controller function

11. Dynamic graphic display, scaling, mirroring and rotating of cutting image

12. Electronic gear regulator enables a controller to different machines

13. Perfectly compatible with CAD/CAM and various nesting softwares, such as IBE

14. Deferment, pre-heat, piece, flame radius compensation, continuous regression and power failure recovery.

Model	SH2200H-QG
Processor	Industrial ARM7 CPU
Display	10.4”Color LCD
System offers	Input 16 ports, output 14 ports
Synchronization	2 axes, can extend to 4 axes
Max. speed	When the Pulse Equivalence is 1μ, max speed is 6m/minute
Pulse Equivalency	Electronic gear, numerator and denominator can reach to 1-65535
User’s program space	64M-128M
Machine case size	410310119(mm)
