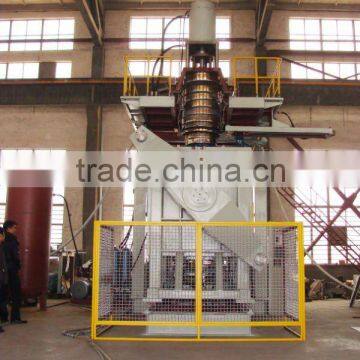

Potable Water Storage Tank(Two Layers)

FOB Price

US$ 200,000 - 280,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Potable Water Storage Tank(Two layers)
Factory in Weifang
Qingdao Port
Professional service
CE certificate

Potable Water Storage Tank(Two layers)

Technical Specification
No.	Item		Unit			SKJ1000L 2 LAYERS
1	Max. Product Volume		(L)			1000
2	Screw Diameter		(MM)			TWO Φ110
3	Screw L/D ratio		(L/D)			30 : 1
4	Screw Drive Power		(KW)			TWO 75
5	Screw Heating Capacity		(KW)			36
6	No. of Heating Zone		(ZONE)			12
7	Output		(KG/H)			320
8	Oil Pump Drive Power		(KW)			37
9	Clamping Force		(KN)			800
10	Mould Open Spacing		(MM)			2300
11	Mould Thickness		(MM)			1000
12	Capacity		(L)			35
13	Die Heat Capacity		(KW)			40
14	No. of Heating Zone		(ZONE)			4
15	Die Head Material		38CRMOALA(accumulator,lining, piston,die)
16	Control Action		MITSUBISHI PLC
17	Blowing Pressure		Mpa		0.6
18	Cooling Water Pressure		Mpa		0.2
19	Size of Machine		(LWH)(MM)		680053005200
20	Weight of Machine		(MT)		24
(The above data is for reference only)
Main Unit
No.		Item		Brand
1		LOW-VOLTAGE APPARATUS		LG
2		PNEMATIC		AIRTAC
3		HYDRAULIC COMPONENT		YUKEN
4		SEAL		DICHTOMATIK
5		OLI MOTOR		ABB
6		SCREW MOTOR		ABB
7		PROXIMITY SWITCH		OMRON
8		PLC		MITSUBISHI
9		TOUCH SCREEN		WEINVIEW
10		WALL THINKNESS CONTRAL SYSTEM		MOOG
11		FREQUENCY CONVERTERS		ABB
12		REDUCTION BOX		GUOMAO
