1000 Liter Water Tnk Bow Mulding Mchine(Two Layers)

FOB Price

USD $200,000 - $400,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Qigndao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Other, Bottle, Tank
Plastic Processed	Other, PE, HDPE	Blow Moulding Type	Extrusion Blow Moulding
Automatic	Other, Yes, YES	Place of Origin	Shandong, China
Brand Name	Sehenda	Model Number	SKJ-Sehenda

Product Description

Specifications

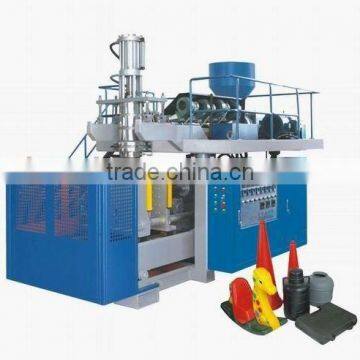

1000 liter water tank blow moulding machine
For PE,HDPE
Fully automatic
CE,ISO9001:2000
20 years experience

1000 liter water tank blow moulding machine

Technical Specification
No.
Item
Unit
SKJ1000L 2 LAYERS
1
Max. Product Volume
(L)
1000
2
Screw Diameter
(MM)
TWO Φ110
3
Screw L/D ratio
(L/D)
30 : 1
4
Screw Drive Power
(KW)
TWO 75
5
Screw Heating Capacity
(KW)
36
6
No. of Heating Zone
(ZONE)
12
7
Output
(KG/H)
320
8
Oil Pump Drive Power
(KW)
37
9
Clamping Force
(KN)
800
10
Mould Open Spacing
(MM)
2300
11
Mould Thickness
(MM)
1000
12
Capacity
(L)
35
13
Die Heat Capacity
(KW)
40
14
No. of Heating Zone
(ZONE)
4
15
Die Head Material
38CRMOALA(accumulator,lining, piston,die)
16
Control Action
MITSUBISHI  PLC
17
Blowing Pressure
Mpa
0.6
18
Cooling Water Pressure
Mpa
0.2
19
Size of Machine
(L*W*H)(MM)
6800*5300*5200
20
Weight of Machine
(MT)
24
(The above data is for reference only)
Main Unit
No.
Item
Brand
1
LOW-VOLTAGE APPARATUS
LG
2
PNEMATIC
AIRTAC
3
HYDRAULIC COMPONENT
YUKEN
4
SEAL
DICHTOMATIK
5
OLI MOTOR
ABB
6
SCREW MOTOR
ABB
7
PROXIMITY SWITCH
OMRON
8
PLC
MITSUBISHI
9
TOUCH SCREEN
WEINVIEW
10
WALL THINKNESS CONTRAL SYSTEM
MOOG
11
FREQUENCY CONVERTERS
ABB
12
REDUCTION BOX
GUOMAO
