Home > Products > Horse trailer > 2 horse trailer angle load standard version 2 horse float

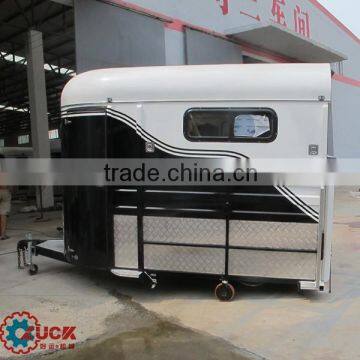

2 horse trailer angle load standard version 2 horse float
- 30 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
Product Details
Max Payload | 1500kg | Size | 4110*2280*2590mm | |
Place of Origin | Shandong, China | Brand Name | LUCKY | |
Model Number | 2HAL-S |
Product Description
Model NO. | 2HAL-S | Origin | Jinan, Shandong, PRC |
Overall Dimensions | 4110*2280*2590 | Dimension of Body | 3260*1980*2230 |
Inner Dimension | 3235*1930*2155 | Color | Single or customized |
Empty Weight | 1400 KG | ATM | 3000 KG |
Its main configuration is:
*Brake away sysytem
*50x50 heavy duty axle
*4 wheels with electric brake
*Inside overhead cupboard
*Swing out saddle box
*Inside and outside light
*14inch alumunium alloy wheel, 185R14C tyre
*Horse bay width 70-90cm is optional
For painting, all color are available.
MODEL:2HAL-S |
1.TRAILER MATERIALS |
1.1 CHASSIS MATERIAL double hot dip galvanized RHS(3.5mm-4.0mm) |
1.2 FRAME MATERIAL double hot dip galvanized RHS(2.5mm) |
1.3 BODY PANEL galvanized (1.2mm) |
1.4 ROOF special molded FRP 3260*1980 |
1.5 NUTS &BOLTS stainless steel |
2.WHEELS & TYRES |
2.1 WHEEL RIM 14'' aluminium alloy rims |
2.2 TYRES 185R14C |
2.3 SPARE WHEEL one |
3.AXLES & SUSPENSIONS |
3.1 AXLES two special trailer axles |
3.2 LEAF SPRINGS roll rocker tandem spring suspension 5 plates |
3.3 BRAKE SYSTEM dual axle electric brake |
4.WINDOWS & DOORS |
4.1 FRONT WINDOW 1220*610 |
4.2 SIDE WINDOWS two sliding windows,one each side |
4.3 VENTS two |
4.4 SIZE OF SIDE DOOR 1755*615 |
4.5 REAR UPPER DOOR 2020*1065 |
4.6 RAMP DOOR 2020*1210 |
4.7 REAR UPPER & RAMP DOOR STRUT high-intensity anti-rust strut |
4.8 HINGES FOR REAR UPPER DOOR special 6mm diameter copper hinges |
5.DRAWBAR |
5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium |
5.2 DRAWBAR SAFETY CHAIN two |
5.3 BRACING WHEEL one |
6.LIGHTS & RETRO REFLECTORS |
6.1 TRAILER PLUGS square 7 wick plug |
6.2 SIDE LAMPS 6 |
6.3 REAR LAMPS LED group |
6.4 REAR LAMPS STAND aluminum |
6.5 RETRO REFLECTORS 8 |
7.MUDGUARD |
7.1 MUDGUARD TYPE compact mudguard |
7.2 MUDGUARD CHECKER PLATE 1.2mm aluminium in the front of mudguard |
7.3 PEDAL & ALUMINIUM STEP 1.2mm aluminium decoration board |
8.INTERIOR & EXTERIOR |
8.1 A KITCHEN none |
8.2 HORSE PROTECTION FRAME full padded |
8.3 HORSE RING four |
8.4 RUBBER MATTING FOR RAMP DOOR 10mm rubber matting |
8.5 RUBBER MATTING FOR FLOOR 10mm rubber matting |
8.6 RUBBER MATTING FOR INNER SIDE PANEL 6mm rubber matting |
8.7 WOOD BOARD FOR FLOOR & RAMP DOOR 18mm hardwood plywood |
8.8 RUG RACK side |
8.9 SADDLE RACK in saddle box |
8.10 SADDLE BOX 1200mm height for 2 saddles |
8.11 PAINTING single or customized |
9.DIMENSIONS |
9.1 OVERALL DIMENSIONS ( L x W x H: mm ) 4110*2280*2590 |
9.2 BODY DIMENSIONS ( L x W x H: mm ) 3260*1980*2230 |
9.3 INNER DIMENSIONS ( L x W x H: mm ) 3235*1930*2155 |
2HAL-S, 3pcs/40HC container, fixed by special belts.
*L/T: 20-45days based on different model
*Payment terms: 20% TT down payment, balance TT before delivery or L/C
*Departure port: Qingdao or as requested
*Help customer to proceed the import if needed (We have cooperation with Australia logistic company)
Our factory is located in Shandong. Our oversea market mainly forcuses on Austrialia, New Zealand, Middle East (Saudi, Arabia, Yemen, UAE etc), southeast countries (Singapore, Malaysia, Thailand, Brunei, etc.), Southeast countries (Chile, Argentina, Brazil).
Below are the mainly horse trailer horse floats models, we also design and produce per customer requested.
Straight load:
2HSL-E 2 horse float straight load economic version (4pcs/40HC)
2HSL-S 2 horse float straight load standard version (3pcs/40HQ)
2HSL-D 2 horse float straight load deluxe version (3pcs/40HQ)
Angle load:
2HAL-S 2 horse float angle load standard version (3pcs/40HQ)
2HAL-D 2 horse float angle load deluxe version (2pcs/40HQ)
3HAL-S 3 horse float angle load standard version (2pcs/40HQ)
3HAL-D 3 horse float angle load deluxe version (2pcs/40HQ)
4HAL-S 4 horse float angle load (2pcs/40HQ)
Gooseneck trailer
1. We have professional sales team, all the sales are trained well before serving you. It shall be a pleasant thing to deal with us. For example, sales must update customer production status weekly to make customer posted for the process.
2. Our factory is ISO approved with ISO certificate, with strict quality control from incoming material to shipment. Below are some key raw materials for our products, it makes our horse floats safty, strong and far from rust.
3. Competitive price. With bulk order to our supplier, it makes our price to you always competitive.
4. Rich experiences. We are one of the earliest horse float factory in China, with more than 7 years experiences, we are more professional and reliable.
