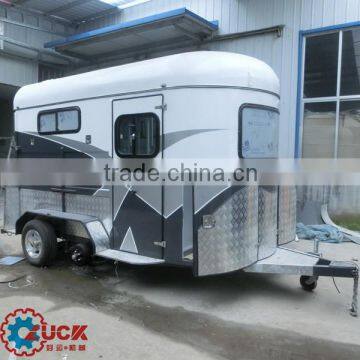

Deluxe 2 horse trailer with 2 access doors

FOB Price

USD $4,100 - $6,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Max Payload	1500kg	Size	432522702590mm
Place of Origin	Shandong, China	Brand Name	LUCKY
Model Number	2HSL-D

Product Description

2HSL-D is a very popular 2 horse trailer straight load, below is the configuration we recommend, you can based on your own requirement to redefine it.

This time, the one is with 2 access doors, all front is a full tack box, also with 2 small doors. There are also fold down window in the access doors, it is a very interesting design.

This model is for sale now, 3pcs/40HC container, with good price. Contact us freely.

Model Number	2HSL-D
Overall Dimensions	432522702590mm
Dimension of Body	347517502230mm
Maximum Internal Dimension of body	345017002155mm
Chassis	hot-galvanized RHS (3.5mm-4.0mm)
Frame	hot-galvanized RHS(2.5mm)
Body	galvanized(iron) sheet(1.0mm-1.5mm)
Roof	glass fibre reinforced plastic 3475*1750mm
Wheel/Tyre	alloy wheels 185R14C
Spare Wheel	1,mounted outside
Suspension	6-leaf plate spring suspension(400KG/leaf),Independent
Axles	trailer axles
Brake System	both axle electric brake
Front Window	1220*610 polycarbonate wind shield
Side Window	two rectangle(diamond) sliding windows,one each side
Turn Lights	two each side(except tail lights)
Tail Lights	two sets
Horse Divider	soft cushion
Decorative Front panel	aluminium checkered plate 1.2mm
Mudguard	protected by aluminium checkered plate
Pedal Plate	decorated with aluminium checkered plate
External Tie Hooks	four,two each side
Jockey Wheel	swing-up jockey wheel
Cupboard	One set
Roof Vents	two vents
Saddle Stents	hangers in saddle box
Toolbox	800550200mm,made of stainless or aluminium
Hay Rack	yes,horse bay tail
Tailgate(upper)	1800*1065mm, pneumatic spring-loaded
Tailgate/Ramp Door	1800*1210mm, pneumatic spring-loaded,10mm rubber matting
Rear door	Rear open Door,not lift up
Horse Area	10mm rubber floor
Side Area Inner	6mm rubber matting
Taillight Mounting Plate	aluminium checkered plate

Packaging & Shipping

2HSL-D 2 horse trailer, it is 3pcs/40HC container

L/T: 25days
