Home > Products > Horse trailer > 4 horse float in line with ADR hot sale in Australia

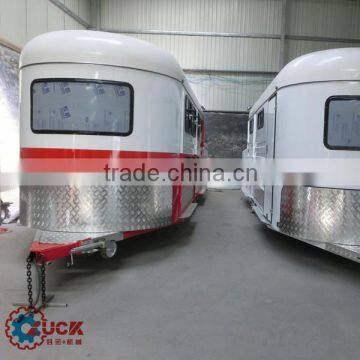

4 horse float in line with ADR hot sale in Australia

FOB Price

US$ 7,000 - 8,200 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Max Payload	2000kg	Size	Depends
Place of Origin	Shandong, China	Brand Name	LUCKY
Model Number	4HAL-S

Product Description

4HAL-S, is 4 horse float standard version without living area.

Model NO.	4HAL-S	Origin	Jinan, Shandong, PRC
Overall Dimensions	6300x2290x2662mm	Dimension of Body	5450x1830x2190mm
Inner Dimension	5425x1780x2120mm	Color	Single or customized
Empty Weight	1800 KG	ATM	3500 KG

MODEL:4HAL- S

1.TRAILER MATERIALS

1.1 CHASSIS MATERIAL double hot dip galvanized RHS(3.5mm-4.0mm)

1.2 FRAME MATERIAL double hot dip galvanized RHS(2.5mm)

1.3 BODY PANEL galvanized (1.2mm)

1.4 ROOF special molded FRP 5450*1980

1.5 NUTS & BOLTS stainless steel

2.WHEELS & TYRES

2.1 WHEEL RIM 14' aluminium alloy rims

2.2 TYRES 195R14C

2.3 SPARE WHEEL one

3.AXLES & SUSPENSIONS

3.1 Axles solid 2 x 50 x 50 RHS

3.2 Suspension - 9 leaf roller rocker tandem spring axles

3.3 BRAKE SYSTEM double axles electric brake with break-away systems

4.WINDOWS & DOORS

4.1 FRONT WINDOW 1220*610

4.2 SIDE WINDOWS 6 sliding rectangular(diamond) windows

4.3 VENTS four sash casement vents

4.4 SIZE OF SIDE DOOR 1755*615

4.5 REAR UPPER DOOR 2020*1065

4.6 RAMP DOOR 2020*1210

4.7 REAR UPPER & RAMP DOOR STRUT high-intensity anti-rust strut

4.8 HINGES FOR REAR UPPER DOOR special 6mm diameter copper hinges

5.DRAWBAR

5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium

5.2 DRAWBAR SAFETY CHAIN two

5.3 BRACING WHEEL one

6.LIGHTS & RETRO REFLECTORS

6.1 TRAILER PLUGS square 7 wick plug

6.2 SIDE LAMPS 6

6.3 REAR LAMPS LED group

6.4 REAR LAMPS STAND aluminium

6.5 RETRO REFLECTORS 8

7.MUDGUARD

7.1 MUDGUARD TYPE compact mudguard

7.2 MUDGUARD CHECKER PLATE 1.2mm aluminium in the front of mudguard

7.3 PEDAL & ALUMINIUM STEP 1.2mm aluminium decoration board

8.INTERIOR & EXTERIOR

8.1 A KITCHEN none

8.2 HORSE PROTECTION FRAME full padded

8.3 HORSE RING eight

8.4 RUBBER MATTING FOR RAMP DOOR 10mm rubber matting

8.5 RUBBER MATTING FOR FLOOR 10mm rubber matting

8.6 RUBBER MATTING FOR INNER SIDE PANEL 6mm rubber matting

8.7 WOOD BOARD FOR FLOOR & RAMP DOOR 18mm hardwood plywood

8.8 RUG RACK side

8.9 SADDLE RACK in saddle box

8.10 SADDLE BOX for 4 saddles

8.11 PAINTING single or customized

9.DIMENSIONS

9.1 OVERALL DIMENSIONS ( L x W x H: mm ) 6300x2290x2662

9.2 BODY DIMENSIONS ( L x W x H: mm ) 5450x1830x2190

9.3 INNER DIMENSIONS ( L x W x H: mm ) 5425x1780x2120

Packaging & Shipping

2-3pcs/40HC container, fixed by special belts.

Our Services

*L/T: 20-45days based on different model

*Payment terms: 20% TT down payment, balance TT before delivery or L/C

*Departure port: Qingdao or as requested

*Help customer to proceed the import if needed (We have cooperation with Australia logistic company)

Advantages

1. We have professional sales team, all the sales are trained well before serving you. It shall be a pleasant thing to deal with us. For example, sales must update customer production status weekly to make customer posted for the process.

2. Our factory is ISO approved with ISO certificate, with strict quality control from incoming material to shipment. Below are some key raw materials for our products, it makes our horse floats safty, strong and far from rust.

3. Competitive price. With bulk order to our supplier, it makes our price to you always competitive.

4. Rich experiences. We are one of the earliest horse float factory in China, with more than 7 years experiences, we are more professional and reliable.
