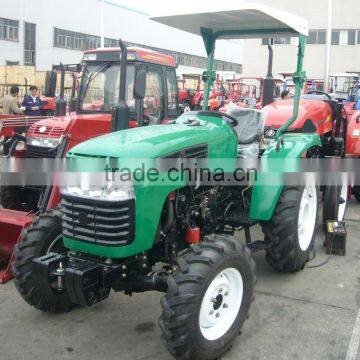

JM-354 35hp china traktor , Jinma brand with high reputation

FOB Price

USD $4,000 - $7,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Wheel Tractor
By wheel	4WD	Usage	Farm Tractor
Drive Type	Gear Drive	Power(W)	25.7KW
Certificate	CE	Brand Name	JINMA
Model Number	JM-354	Place of Origin	Jiangsu, China
After-sales Service Provided	Overseas service center available

Jinma 20-35hp mini tractor for sale now at very good price. All the tractors are from Jinma factory with 12 months warranty.

35hp 4wd Jinma 354 tractor spec.

Tractor Parameters	Model		JM-354
	Drive Type		4WD
	Overall Dimensions LWH(mm):		3357x1435x1985
	WheelTrack(mm)	Front	1200
		Rear	1150-1450
	Wheel Base(mm)		1833.5
	Ground Clearance (mm)		292
	Rated Traction Force(N)		8800
	Construction Mass(kg)		1800
	Min.Turning Radius(m)		4.2
	Theoretical Speed (With out creeper gear (km/h)	Forward	2.248,3.008,4.217,6.258,10.37,13.875,19.451,28.867
		Reverse	2.861,13.2
Engine	Model		TY3100/4L22T
	Type		3/4-Cylinder,Vertical,Water-Cooed,4 Stroke Cycle
	Rated Power(kw/hp)		25.7/35
	Rated Speed (rpm)		2300/2350
	Bore*Stroke(mm)		100105/8595
	Total Displacement(L)		2.47/2.156
Drive Sysytem	Clutch		Single/Dual stage
	Gear Box		(4+1)*2
	Main Drive		One Pair of Spiral Bevel Gearing
	Differential		Bevel Gear
	Differential Lock		Jaw Lock
	Final Transmissions		Spur Gear,External,Gearing
Travelling Mechanism	Tyre	Front	7.5-16
		Rear	11.2-24
	Steering Gear		Power Steering
	Brake		Disc type
Working Device	Hydraulic System	Lifting Capacity at 610mm Behind Lift Pioint (N)	5800
		3-Point Suspension	Category:I
	P.T.O Shaft	Speed (rpm)	540/720 or
			540/1000
		Spline Size	5Rectangular 6 Spline
OPTIONS			ROLL BAR,CANOPY,CAB

Color: gree, red, blue, silver are optional

Packaging & Shipping

Iron frame or nude packing in container

L/T: 35days after order confimmation

Our Services

Payment terms: 30% TT down payment, 70% TT before delivery

Warranty: 12months

Departure port: Qingdao or Shanghai

FAQ

Why we only sell Jinma/YTO tractor?

1)Jinma/YTO tractor quality is good, it is reliable tractor

2)YTO company is with high reputation and good credit

3)We are partner of Jinma/YTO factory

What's the payment terms?

30% TT down payment, 70% TT before delivery.

Is it farm implements available?

Yes, it is available.
