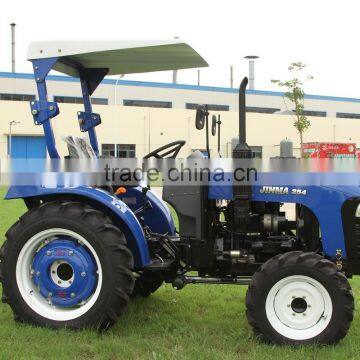

JM-254 25hp mini tractor, 3 cylinder engine, power steering

FOB Price

USD $4,000 - $7,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Wheel Tractor
By wheel	4WD	Usage	Farm Tractor
Drive Type	Gear Drive	Power(W)	22.1
Certificate	CE	Brand Name	JINMA
Model Number	JM-254	Place of Origin	Jiangsu, China
After-sales Service Provided	Overseas service center available

Jinma 20-35hp mini trator mini for sale now at very good price. All the tractors are from Jinma factory with 12 months warranty.

25hp 4wd Jinma trator spec.

Model				JM-254
Drive Type				4WD
Overall Dimensions				3080x1440x1930
LWH(mm):
Wheel Track (mm)	Front			1100
	Rear			1040-1200
Wheel Base(mm)				1645
Ground Clearance (mm)				295
Rated Traction Force(N)				5980
Construction Mass(kg)				1140
Min.Turning Radius(m)				2.8
Theoretical Speed (Without creeper)( km/h)		Forward		1.73,3.42,5.71,8.01,15.80,26.40
		Reverse		1.37,6.35
Theoretical Speed (With creeper)( km/h)		Forward		0.32,0.64,1.06,1.49,2.95,4.92
		Reverse		0.26,1.18
Engine	Model				Y385/KM385
	Type				3-Cylinder Vertical,water cooled,4 stroke cycle
	Rated Power(kw/hp)				18.4/25
	Rated Speed (rpm)				2350
	Bore*Stroke(mm)				85*90
	Total Displacement(L)				1.532
Drive system	Clutch				Single/Dual-Stage
	Gear Box				(3+1)*2
	Main Drive				One Pair of Spiral Bevel Gearing
	Differential				Bevel Gear
	Differential Lock				Jaw Lock
	Final Transmission				External gearing, Spur Gear
Traveling Mechanism	Tyre		Front		6.00-16
			Rear		9.5-24
	Steering Gear				Full Hydraulic Steering
	Brake				Disc type
Working device	Hydraulic System		Lifting Capacity at 610mm Behind Lift Point (N)		4200
			3-Point Suspension		Category:I
	P.T.O		Speed (rpm)		540/1000
	Shaft		Spline Size		35Rectangular 6 Spline
OPTIONS	ROL BAR,CANOPY,SHUTTLE,HYDRAULIC STEERING,TURF TYRE,CAB

Color: gree, red, blue, silver are optional

Packaging & Shipping

Iron frame or nude packing in container

L/T: 35days after order confimmation

Our Services

Payment terms: 30% TT down payment, 70% TT before delivery

Warranty: 12months

Departure port: Qingdao or Shanghai

FAQ

Why we only sell Jinma/YTO tractor?

1)Jinma/YTO tractor quality is good, it is reliable tractor

2)YTO company is with high reputation and good credit

3)We are partner of Jinma/YTO factory

What's the payment terms?

30% TT down payment, 70% TT before delivery.

Is it farm implements available?

Yes, it is available.
