Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | VFL650-6, visual fault locator |
Product Description

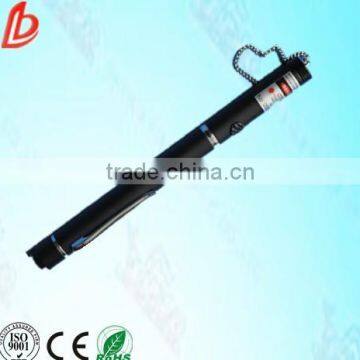

Optical Fiber Detection Pen / Optical Fiber Detection Pen 5mw fiber optic test pen
Description:
Fiber optic visual fault locator adopts 650nm laser diode as a light emitting device,the output power can be up to 1mw-20mw. It’s applied to single-mode or multi-mode fiber measurements.In the meantime, you can use SC / ST adapter and do not need to configure the conversion interface furthermore, it can optionally connect all frequently-used joint.It is an ideal tool to test various types of optic fiber patch cord, ribbon, bundle fiber optic pigtail and maintain a variety of fiber optic lines for you.
Features:
1.2.5mm universal connector,
2.Operates either in CW or Pulsed mode with constant output power
3.Long battery life (up to 60 hours)
4.Drop-resistand and dust-proof design of laser head
5.Laser case ground design prevents ESD damage
Application:
1. Using high-quality triangular laser chip life 8000-12000 hours
2. Using APC circuit boards, constant power output and anti-anti-mounted battery set
3. 2.5mm universal interface with optical port protection and special chain device
4. Domestic unique pattern button design, exquisite comfort
5. Always, flash, slow flash (3HZ) three operating modes
6. Copper shell, with a pen clip design, weighs only 60g, light and easy to carry
Specifications
Model | VFL650-6 | |||
Central wavelength | 650nm±10nm(635nm is available on request)
| |||
Emitter type | FP-LD | |||
Output power | 5mw | 10mw | 20mw | 30mw |
Laser Range | ≥5km | ≥10km | ≥20km | ≥30km |
Optical connector | 2.5mm universal connector(FC/SC/ST) | |||
Operating model | Both CW and Pulse available | |||
Power supply | 2 AAA alkaline batteries | |||
Operating temperature | -20°C to 60°C | |||
Storage temperature | -40°C to 85°C | |||
Dimension | 176 x 16mm | |||
Weight | 57.5g (without battery)
| |||
Pictures:
