Auto Centering Vibrating Screen / Gold Mining Screening Machine
- 20 Set / Sets per Month
- qingdao
- T/T
You May Like
-
Trommel screen, screening equipment with professional design, mineral screening machine
-
Mining Machine Thickener with central transmission high quality new technology for Bolivia mining gravity equipment
-
Mining Machine Thickener with central transmission high efficiency high quality for Honduras mining gravity equipment
-
Mining Machine Thickener with central transmission high efficiency high quality new technology for fluorite mining
-
Mining Machine Thickener with central transmission high efficiency high quality new technology for Malaysia mining
-
Mining Machine Thickener with central transmission high efficiency high quality new technology for Cheli mining
Product Details
| Condition | New | Type | Circular | |
| Application | Ore | Place of Origin | Shandong, China | |
| Brand Name | jinpeng | Dimension(L*W*H) | as customer's requirements | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Yantai Jinpeng Mining Machinery CO., LTD
Professional mineral processing design, equipment production,installation and conmissioning institue.
Tel: 0086-535-3975297
Cel:0086-13675359511
Skype:bixueqq

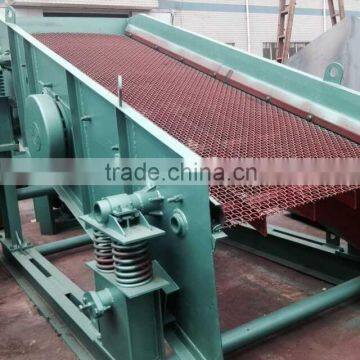

YA/YAH series double-decks round vibrating screen for mining
- Screen Box 2. Support chassis 3. Motor 4. Vibrator 5. Spring-loaded devices
This series vibrating screen with simple structure, and easy to maintenance, reliable to operation, and screen efficiency high. It can desliming, dehydration and removing medium operation for medium-grained material for mining, coal, electricity, construction and chemical materials. And installation of rubber screen is preferred for grading cokes material.
The motor spread to vibrator through the V belt, because the rotation of eccentric shaft causing vibration, making the screen deck do circular tracking movement, thereby make mineral rolling and vibrating on the surface of screen. The large on the surface of the screen, the size of the material less than screen pore will fall under the screen to achieve the purpose of screening.
Name | Number | Unit | Name | Number | Unit |
Specification of screen deck | 1200×2400 | mm | size of screen pore | Decide by customer | mm |
Angle of Screen | 20 | degree | maximum size of feed particle | 100 | mm |
Amplitude | 3.5 | mm | Motor | Y132S-4 | 5.5KW
|
Vibration times | 800 | ||||
No. of screen deck Layer | 1 | layer | dimension | 2469×2269×2325 | mm |
Usually used in the following similiar process of gold,silver,copper, lead zinc, molybdenum and so on.
Provide ore dressing experiment,process design and onsite engineering service.
Welcome to visit our lab, design institute and factory!
