Home > Products > Check Valve > 3-PC Spring Loaded Check Valve

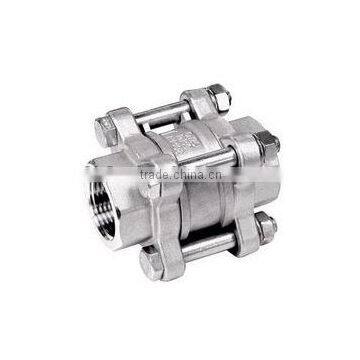

3-PC Spring Loaded Check Valve
- Qingdao
- T/T L/C D/P D/A
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Check | |
| Pressure | Medium Pressure | Power | Hydraulic | |
| Material | Other, Stainless Steel, Stainless Steel | Temperature of Media | Normal Temperature | |
| Media | Water | Port Size | DN10-DN100 | |
| Place of Origin | Shandong, China | Model Number | 3PC-CV026 | |
| Brand Name | OEM | Application | General |
Product Description
Stainless Steel 3PC Spring Type Check Valve
Description: 3-PC Stainless Steel Check Valve
Size: 1/4” ~4”
Pressure Rating: 1000PSI
Material: CF8M
Product Character
For chemical and industrial application
High quality investment casting
100% tested by air-under water for open & close position
End Type: BSP, NTP, DIN
Design Standard : ANSI B 16.34
Testing : API 598
SIZE RANGE :
| 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2.5" | 3" | 4" |
| DN8 | DN10 | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 |
Material List
Main Parts | Material |
Body | CF8M |
Disc | Stainless steel 304 |
Cap | CF8M |
Seal | PTFE |
Spring | Stainless steel 316 |
Bolt | Stainless steel 316 |
Nut | Stainless steel 316 |
Stopper | Stainless steel 304 |
