Home > Products > Brass Check Valve > ART.4004 China Supplier 1/2-4 inch Brass Natural Color Non Return Vertical Spring Check Valve with Brass Core for Air Compressor

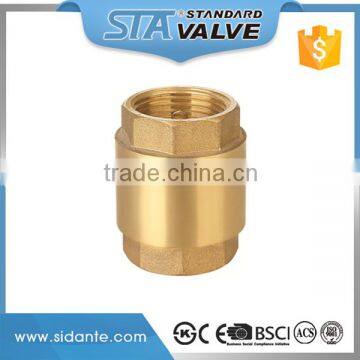

ART.4004 China Supplier 1/2-4 inch Brass Natural Color Non Return Vertical Spring Check Valve with Brass Core for Air Compressor
- NINGBO/SHANGHAI/GUANGZHOU
- T/T L/C D/P D/A
You May Like
-
ART.4004 Manufacturer 1/2" durable professional competitive price ball type with brass core 1/2 inch brass spring check valve
-
ART.4001 Manufacturer DN50 1/2 2 inch Female NPT BSP Thread Brass Vertical Spring Loaded in-Line Check Valve with Plastic Core
-
ART.4004 factory stock brass check valve 600 wog and one way sandwich with high pressure thread material cw617n
-
ART.4006 Brass In-Line Spring Water Check Valve Supplier For Air Compressor For Refrigeration CW617n Material In China
-
ART.4008 factory stock 1/2 3/4 1 inch check valve sand blast hydraulic motorize CW617n three way plating nipple high pressure
-
ART.4011 Heavy Duty 1/2" 1" 1 1/4" BSP F/F Female Threaded Check Foot Valve Suction Forged Brass Non Return Valve Price for Pump
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | Low Pressure | Power | Manual | |
| Material | Brass | Temperature of Media | Medium Temperature | |
| Media | Other, Water,Gas,Oil,Air | Port Size | From 1/2" - 4" | |
| Place of Origin | Zhejiang, China | Model Number | ART.4004 | |
| Brand Name | STA | Application | General |
Product Description
ART.4004 China Supplier 1/2-4 inch Brass Natural Color Non Return Vertical Spring Check Valve with Brass Core for Air Compressor
1.Principle of Check Valve:
The main function is cut off or connect the fluid piping,Ball Valves have finished opening or closing action
completely with the help of drive in the stem to apply a certain torque and pass to the structure to rotate it 90
degress.
2.Feature of Check Valve:
Small Flow Resistance Force, switch quickly, convenient, good sealing and long serving life.
3.Installation Instruction of Check Valve:
(1) we must rinse and clean up the remaining impurities in the pipelines (because it might be damaged for the
ball of the seat), when we are prepared for connecting with pipeline.
(2) This product should be installed in horizontal or vertical direction of the pipeline.(As shown in Figrue 1)
(3) When the pipeline is not in a horizontal or resist and applied force, it can be used in eliminating the
deviation of pipeline by piping supports or other supports.
Dimensions of ART.4004 China Supplier 1/2-4 inch Brass Natural Color Non Return Vertical Spring Check Valve with Brass Core for Air Compressor:
| Drawing No. | DN | A | B | Piece/box | Piece/carton |
| 4056030 | 1/2" | 69 | Φ46 | 50 | 300 |
| 4056040 | 3/4" | 48.5 | Φ40 | 32 | 192 |
| 4056050 | 1“ | 56.5 | Φ45.5 | 20 | 100 |
| 4056060 | 1 1/4” | 60 | Φ57.5 | 15 | 60 |
| 4056070 | 1 1/2“ | 70 | Φ64.5 | 12 | 48 |
| 4056080 | 2” | 76 | Φ80 | 4 | 24 |
| 4056090 | 21/2“ | 94 | Φ97 | / | 11 |
| 4056100 | 3” | 102 | Φ111 | / | 9 |
| 4056110 | 4“ | 140 | Φ123 | / | 6 |
ASSEMBLY DRAWING
| | ||||||||||||||||||||
|
| |
| |
| |
| |
| |
| |
| |
| |
| |
Q1:Which brass material do you have?
A: Lead Free: CW509L CW511L. Common:DZR CW602N , CW617N, C3604 H59-1 H28-2A.
Q2:How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 45-50 days if the goods won't be in stock, it is according to quantity.
Q3: Can be customized?
A:It’s OK. After the drawing, sample and mould are sent to us from you, we can develop for you.
Q4:How long is the warranty time?
A: 10 Years.
Q5: What’s your payment term?
A: 1. T/T.30% as deposit before production, the balance before shipment.
2. L/C at sight (for large quantity order)
3. 100% T/T in advance.
