Home > Products > Brass Ball Valve > ART.1009 DN10 DN65 DN80 Two-Piece Female NPT Brass Ball Lever Shut Off Valve Water/Air/Pneumatic/Fluid 600WOG Water Oil Gas Air

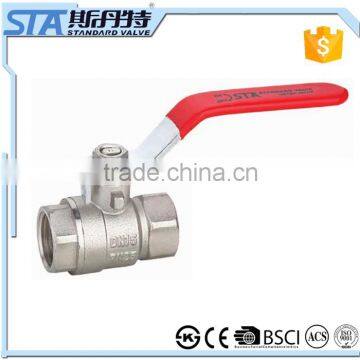

ART.1009 DN10 DN65 DN80 Two-Piece Female NPT Brass Ball Lever Shut Off Valve Water/Air/Pneumatic/Fluid 600WOG Water Oil Gas Air
US$ 0.7 - 30
/ Piece
1 Piece(Min. Order)
- NINGBO/SHANGHAI/GUANGZHOU
- T/T L/C D/P D/A
You May Like
-
ART.1010 Full Port 3/4" BSP female Thread Turn to 3/4" BSP male Thread Brass Ball Valve with lever handle for water gas oil air
-
ART.1005 simple design silver white 2-way american standard 1 2 3 4 inch lever handle female forged full bore brass ball valve
-
M/M Male to Male Thread Lever Handle Full Port Brass Ball Valve
-
2PC Female Threaded Brass Ball Valve with Butterfly Handle Dn20
-
Male to Female Butterfly Handle Forged Nickel Plated Brass Ball Valve
-
Forged male and male thread nickel plated brass ball valve with red butterfly handle for water
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | Low Pressure | Power | Manual | |
| Material | Brass | Temperature of Media | Medium Temperature | |
| Media | Other, Water,Gas,Oil,Air | Port Size | 1/4"-4" | |
| Place of Origin | Zhejiang, China | Model Number | ART.1009 | |
| Brand Name | STA | Application | General |
Product Description
ART.1009 DN10 DN65 DN80 Two-Piece Female NPT Brass Ball Lever Shut Off Valve Water/Air/Pneumatic/Fluid 600WOG Water Oil Gas Air
Product Description
| Drawing No. | DN | A | B | C | D | Piece/box | Piece/carton |
1195010 | 1/4‘ | Φ9 | 40.5 | 80 | 43 | 18 | 216 |
1195020 | 3/8“ | Φ10 | 40.5 | 80 | 45 | 18 | 216 |
1195030 | 1/2" | Φ15 | 48.5 | 85 | 49 | 12 | 144 |
| 1195040 | 3/4" | Φ20 | 56 | 85 | 55 | 14 | 84 |
| 1195050 | 1" | Φ25 | 67.5 | 125 | 65 | 8 | 48 |
| 1195060 | 1 1/4" | Φ32 | 81 | 142 | 78 | 8 | 32 |
| 1195070 | 1 1/2" | Φ40 | 91.5 | 142 | 85 | 6 | 24 |
| 1195080 | 2" | Φ50 | 101.5 | 168 | 95 | 4 | 16 |
| 1195090 | 2 1/2“ | Φ64 | 134.5 | 225 | 121 | / | 4 |
| 1195100 | 3" | Φ79 | 157.5 | 280 | 131 | / | 2 |
| 1195110 | 4” | Φ99 | 190 | 280 | 146 | / | 2 |
You may like:
Packaging & Shipping
We can accept customer's packing requirement.
Company Information
Certifications
FAQ
1. Q:Which brass material do you have?
A: Lead Free: CW509L CW511L. Common:DZR CW602N , CW617N, C3604 H59-1 H28-2A.
2. Q:How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 45-50 days if the goods won't be in stock, it is according to quantity.
3. Q: Can be customized?
A:It’s OK. After the drawing, sample and mould are sent to us from you, we can develop for you.
4. Q:How long is the warranty time?
A: 10 Years.
5. Q: What’s your payment term?
A:1. T/T.30% as deposit before production, the balance before shipment.
2. L/C at sight (for large quantity order) 3. 100% T/T in advance.
