Product Details
| Place of Origin | Guangdong, China | Brand Name | Harvatek | |
| Model Number | HQ19-2331RGBC, HQ19-2331RGBC | Type | LED | |
| Package Type | Surface Mount | Max. Forward Voltage | 3.6V | |
| Max. Reverse Voltage | 5.0V | Max. Forward Current | 30mA | |
| Max. Reverse Current | 5uA |
Product Description
High Lumens surface mount sanan epistar chip 0603 4-pin rgb led diode
1. Features |
l Package ( L/W/H ) :1.6×1.5×0.55 mm l Color : Ultra Bright RGB Full Color l Lens: Water Clear Flat Mold l EIA STD Package l Meet ROHS, Green Product l Compatible With SMT Automatic Equipment l Compatible With Infrared Reflow Solder Process |

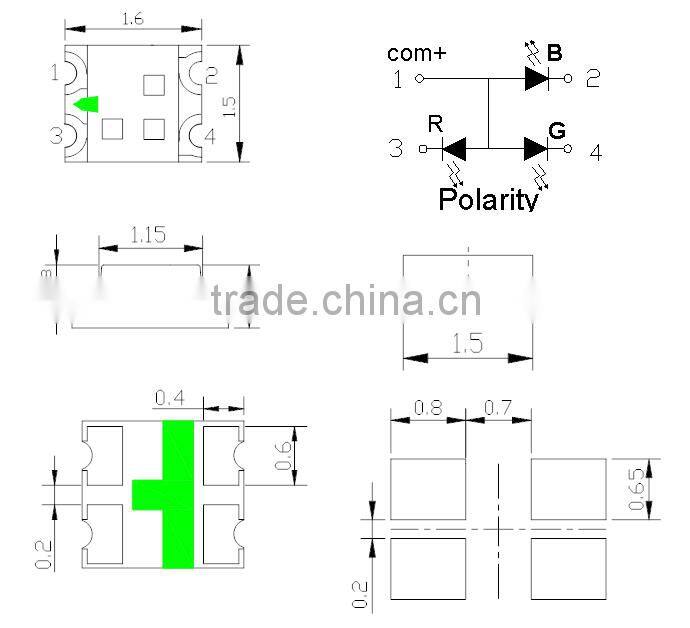

Notes: 1. All dimensions are in millimeters ;
2. Tolerance is ± 0.10 mm unless otherwise noted.
Parameter | Symbol | Rating | Unit | ||
Power Dissipation | Pd | B | 90 | mW | |
R | 90 | ||||
G | 90 | ||||
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) | IFP | B | 100 | mA | |
R | 80 | ||||
G | 100 | ||||
DC Forward Current | IF | B | 30 | mA | |
R | 30 | ||||
G | 30 | ||||
Reverse Voltage | VR | B | 5 | V | |
R | 5 | ||||
G | 5 | ||||
Operating Temperature Range | Topr | -30°C ~ + 85°C | |||
Storage Temperature Range | Tstg | -40°C ~ + 90°C | |||
Soldering Condition | Tsol | Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds | |||
Electrostatic Discharge | ESD | 2000 | V | ||

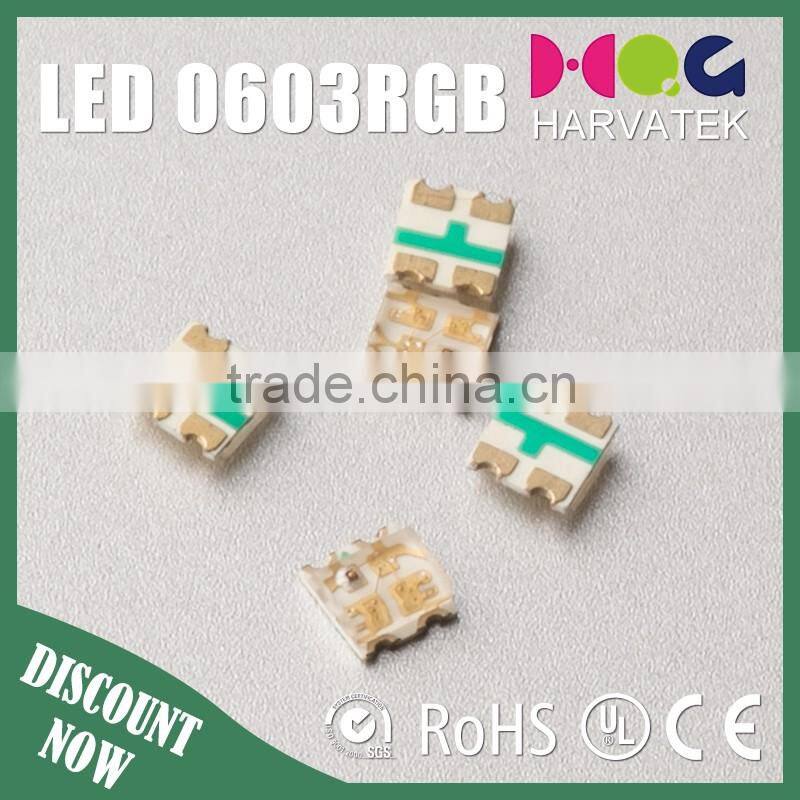

2. Products View
1. Your inquiry related to our products or prices will be replied in 10 hours.
2. We have own independent R&D department on existing products for better maintenance, and still continue to develop some high-tech products. We have our own patented products.
3. Well-trained and experienced staffs to answer all your inquiries in fluent English.
4. We offer two-year’s warranty for our products and provide free technical guidance services.
For more details of 0603 rgb led diode and free samples, click the "send" below to contact us!
