Product Details
| Model Number | HQ17-2102UYC, HQ17-2102UYC | Chip Material | AlGaInP | |
| Emitting Color | Yellow | Luminous Intensity | 115mcd | |
| Luminous Flux(lm) | 6-7lm / 5-6lm | Optical Attenuation(%) | 5 | |
| Power | 0.06W | Power Dissipation | 75 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | Y: 582-597nm | |
| Operating Temperature(℃) | -35, 80 | Storage Temperature(℃) | -40, 90 | |
| Place of Origin | Guangdong, China | Brand Name | Harvatek | |
| Certification | CE, CE, CE |
Product Description

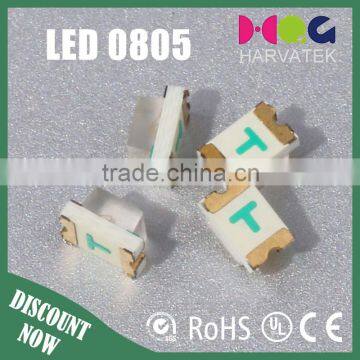

Good quality 2.0x1.25x1.1mm sanan chip 0805 yellow flashing smd led
1. Features |
l Package ( L/W/H ) : 2.0 × 1.25 × 1.1 mm l Color : Ultra High Bright Yellow l Lens: Water Clear Flat Mold l EIA STD Package l Meet ROHS, Green Product l Compatible With SMT Automatic Equipment l Compatible With Infrared Reflow Solder Process |

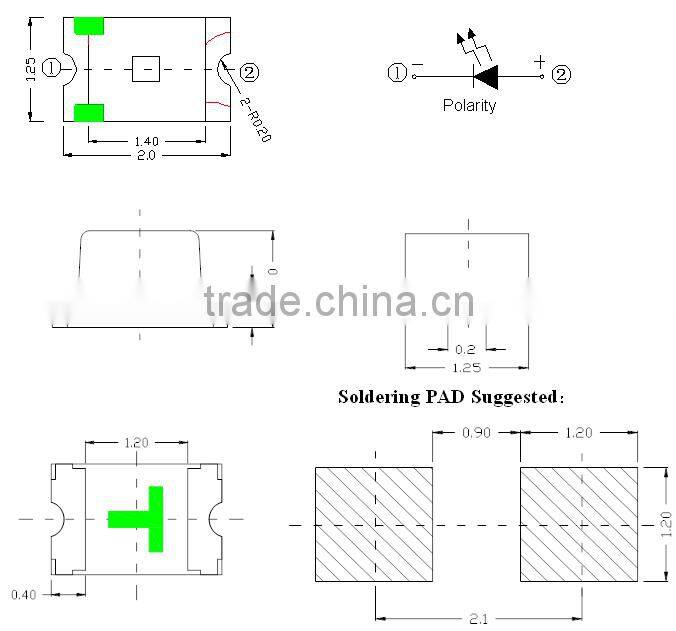

Notes: 1. All dimensions are in millimeters ;
2. Tolerance is ± 0.10 mm unless otherwise noted.
Parameter | Symbol | Rating | Unit |
Power Dissipation | Pd | 75 | mW |
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) | IFP | 70 | mA |
DC Forward Current | IF | 25 | mA |
Reverse Voltage | VR | 5 | V |
Operating Temperature Range | Topr | -30°C ~ + 85°C | |
Storage Temperature Range | Tstg | -40°C ~ + 90°C | |
Soldering Condition | Tsol | Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds | |
2. Products View
