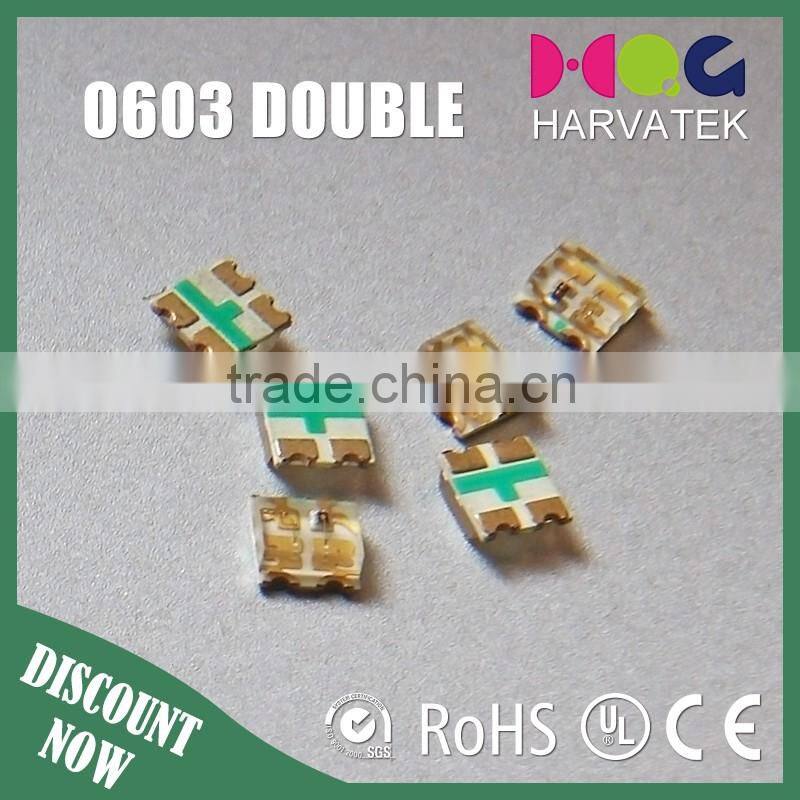

Best quality 1.6x1.5x0.55mm chip led surface mount 0603 bi-color red white led
- 500000000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Free samples 25mA clear lens sanan chip surface mount 0603 1608 rgb led
-
Clear lens 0.6T surface mount sanan epistar chip 0603 4-pin rgb led diode
-
Good price 25mA surface mount clear lens sanan chip 0603 4-pin rgb led diode
-
Harvatek 0.6T sanan chip surface mount 25mA 0603 4-pin rgb led diode
-
Best quality 3.2x2.7x1.1mm sanan chip surface mount 0603 bi-color red green led
-
Good price 3.2x2.7x1.1mm 25mA surface mount 0603 bi-color red blue led
Product Details
| Place of Origin | Guangdong, China | Brand Name | Harvatek | |
| Model Number | HQ19-2232RWAC, HQ19-2232RWAC | Type | LED | |
| Package Type | Surface Mount | Max. Forward Voltage | 3.6V | |
| Max. Reverse Voltage | 5.0V | Max. Forward Current | 30mA | |
| Max. Reverse Current | 5uA |
Product Description
Best quality 1.6x1.5x0.55mm chip led surface mount 0603 bi-color red white led
1. Features |
l Package ( L/W/H ) : 1.6×1.5×0.55mm l Color : Ultra Bright Red,Warm White l Lens: Yellow Diffuse Flat Mold l EIA STD Package l Meet ROHS, Green Product l Compatible With SMT Automatic Equipment l Compatible With Infrared Reflow Solder Process |

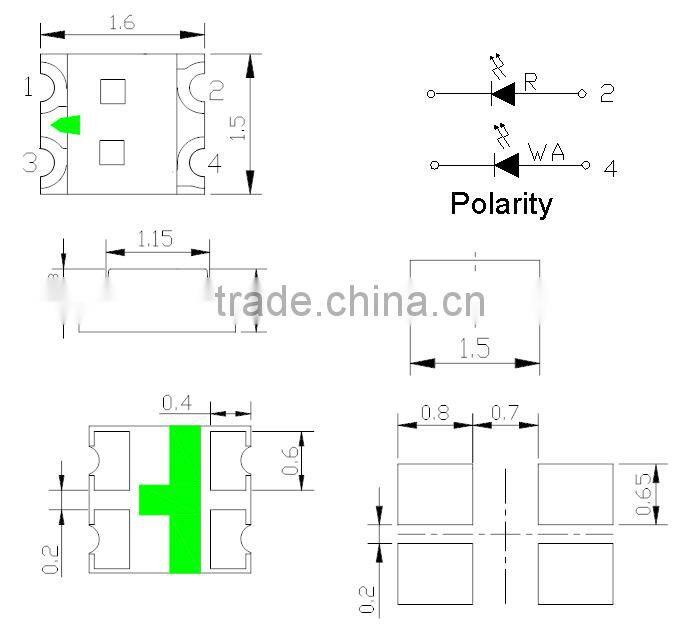

Notes: 1. All dimensions are in millimeters ;
2. Tolerance is ± 0.10 mm unless otherwise noted.
Parameter | Symbol | Rating | Unit | ||
Power Dissipation | Pd | R | 75 | mW | |
WA | 75 | ||||
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) | IFP | R | 70 | mA | |
WA | 100 | ||||
DC Forward Current | IF | R | 25 | mA | |
WA | 25 | ||||
Reverse Voltage | VR | R | 5 | V | |
WA | 5 | ||||
Operating Temperature Range | Topr | -30°C ~ + 85°C | |||
Storage Temperature Range | Tstg | -40°C ~ + 90°C | |||
Soldering Condition | Tsol | Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds | |||
Electrostatic Discharge | ESD | 2000 | V | ||
2. Products View
1. Your inquiry related to our products or prices will be replied in 10 hours.
2. We have own independent R&D department on existing products for better maintenance, and still continue to develop some high-tech products. We have our own patented products.
3. Well-trained and experienced staffs to answer all your inquiries in fluent English.
4. We offer two-year’s warranty for our products and provide free technical guidance services.
For more details of 0603 bi-color red white led and free samples, click the "send" below to contact us!
