7000-11000K 0.4T sanan chip 25mA good price 0603 white led smd
- 500000000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High quality 1.6x1.5x0.55mm sanan chip 25mA 0603 bi-color red blue led
-
Wholesale 0.6T surface mount sanan chip 20mA 0603 red green dual color led
-
Free samples 1.6x1.5x0.55mm sanan chip surface mount 0603 bi-color red yellow led
-
Free samples 1.6x1.5x0.55mm sanan epistar chip 0603 bi-color red yellow led
-
Best quality 1.6x1.5x0.55mm chip led surface mount 0603 bi-color red white led
-
Free samples 25mA clear lens sanan chip surface mount 0603 1608 rgb led
Product Details
| Model Number | HQ19-2151UWC, HQ19-2151UWC | Chip Material | InGaN | |
| Emitting Color | Cool White | Luminous Intensity | 450mcd | |
| Luminous Flux(lm) | 6-7lm / 5-6lm | Optical Attenuation(%) | 5 | |
| Power | 0.06W | Power Dissipation | 75 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | 7000-11000K | |
| Operating Temperature(℃) | -35, 80 | Storage Temperature(℃) | -40, 90 | |
| Place of Origin | Guangdong, China | Brand Name | Harvatek | |
| Certification | CE, CE, CE |
Product Description
7000-11000K 0.4T sanan chip 25mA good price 0603 white led smd
1. Features |
l Package ( L/W/H ) : 1.6 × 0.8 × 0.4 mm l Color : Ultra Bright Standard White l Lens: Yellow Diffuse Flat Mold l EIA STD Package l Meet ROHS, Green Product l Compatible With SMT Automatic Equipment l Compatible With Infrared Reflow Solder Process |

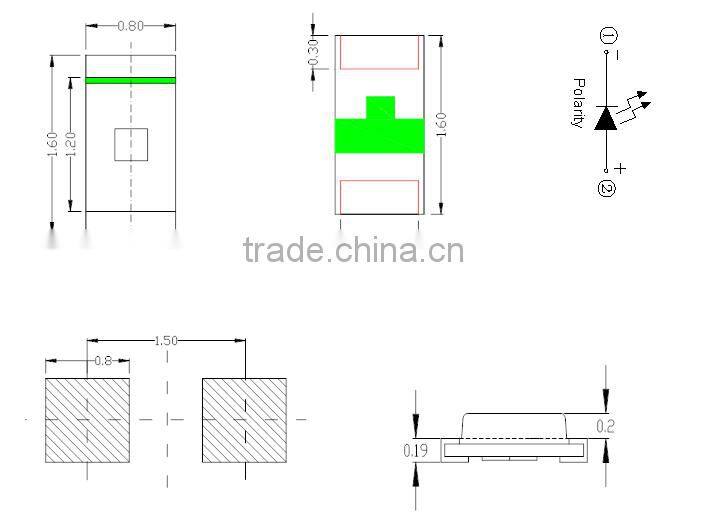

Notes: 1. All dimensions are in millimeters ;
2. Tolerance is ± 0.10 mm unless otherwise noted.
Parameter | Symbol | Rating | Unit | |
Power Dissipation | Pd | 75 | mW | |
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) | IFP | 100 | mA | |
DC Forward Current | IF | 25 | mA | |
Reverse Voltage | VR | 5 | V | |
Operating Temperature Range | Topr | -30°C ~ + 85°C | ||
Storage Temperature Range | Tstg | -40°C ~ + 90°C | ||
Soldering Condition | Tsol | Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds | ||
Electrostatic Discharge | ESD | 2000 | V | |

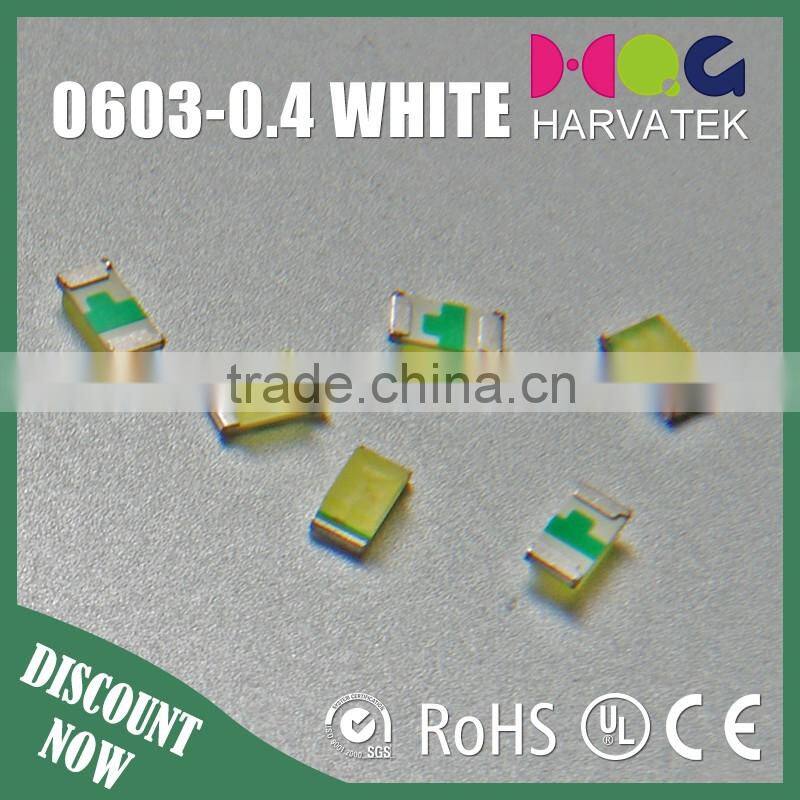

2. Products View
1. Your inquiry related to our products or prices will be replied in 10 hours.
2. We have own independent R&D department on existing products for better maintenance, and still continue to develop some high-tech products. We have our own patented products.
3. Well-trained and experienced staffs to answer all your inquiries in fluent English.
4. We offer two-year’s warranty for our products and provide free technical guidance services.
For more details of 0603 led smd and free samples, click the "send" below to contact us!
