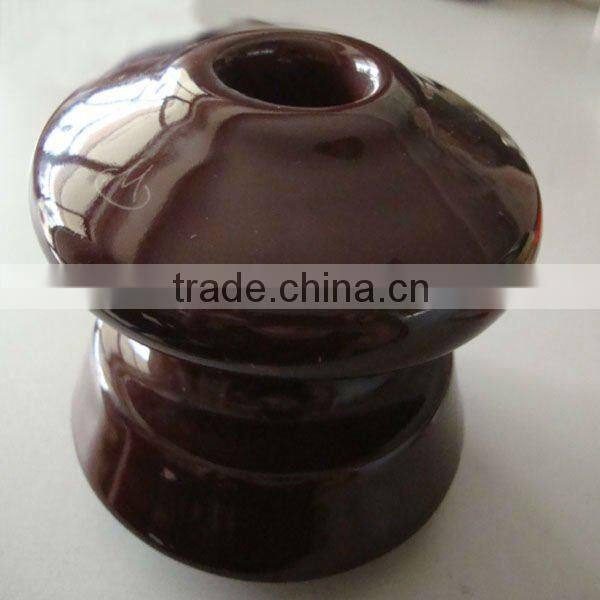

HiKRD High Quality Spool Porcelain Insulator for Low Voltage Circuit

FOB Price

Negotiable / Piece

5000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Material:porcelain

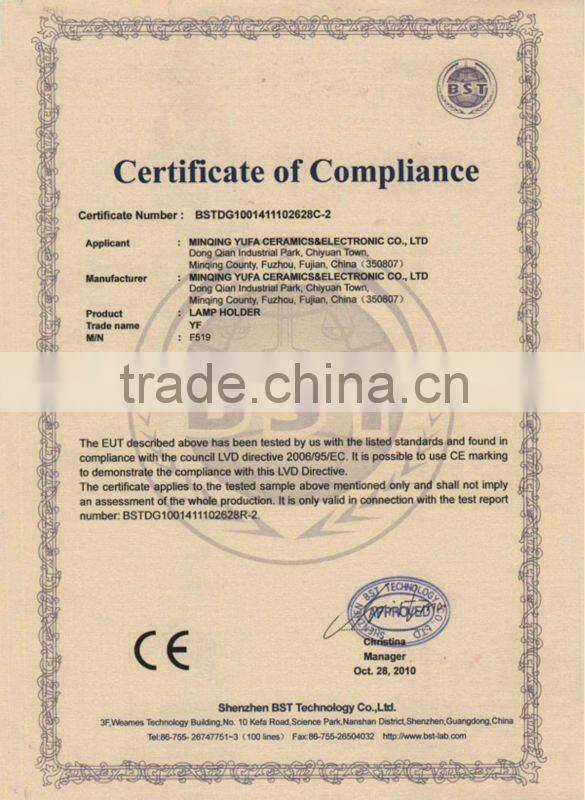

2.Certificate: CE
lor: brown or white
4.Stable quality,good price

1. Nominal creepage distance: 540mm

2. Cantilever stregth: 12.5KN

3. Lightning impulse withstand voltage: 150KV

4. Frequency withstand wet voltage: 60KV

5. Frequency withstand dry voltage: 90KV

6. Color: Brown or white

7. Applicable standard: IEC 383

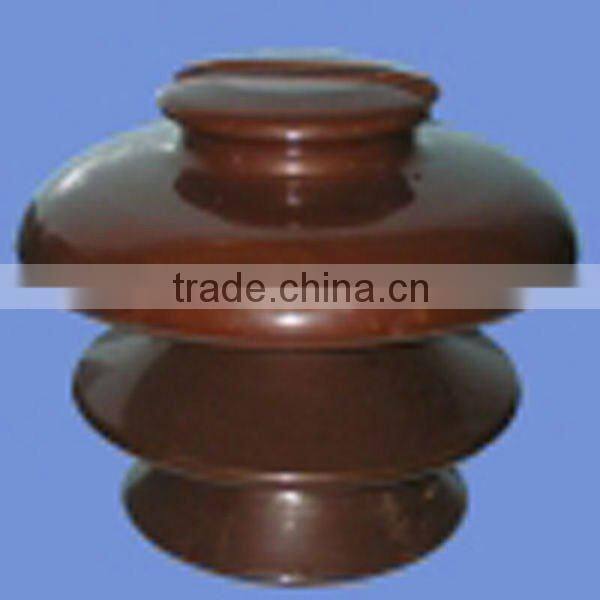

pin insulator					56-4
Main Dimensions(mm)			H		241
			h		50.8
			D		305
			d		34.9
			R1		19
			R2		14
Nominal Voltage(kv)					110
Creepage Distance(mm)					685
Minimun Flashover Voltage	Power-frequency			Dry(kv)	90
				Wet(kv)	60
	50Impulse			Positive(Kv)	225
				Negative(kv)	310
Withstand Voltage	One minute power-frequency			Dry(kv)	140
				Wet(kv)	95
	Impulse(kv)				150
Radio-Influence-Voltage Data		Test Voltage to Ground(kv)			30
		Maximum RIV at 1000kHzuV			200
Power-frequency puncture Voltage(kv)					186
Cantilever Failing Load(kN)					13.6
Weight(kg)					10.8
