rotary screen printing production line

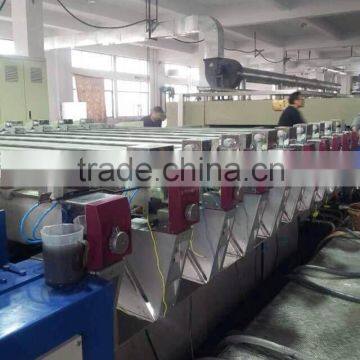

HD-6   rotary screen printing production line

Technical features:

1. Independent servo/computer controls

2. High stability: printing unit precision pneumatic controls stability

3. High corrosion resistance: 80% of stainless steel steel and corrosion-resistant materials

4. Mechanical systems integration: low failure disign

5. New concept of energy saving and environment protection, save water and electricity (cycling use of water)

6. Scraper/magnetic rod combination machine: suitable for different weight fabric

7. Printing stable and flexible: imported stainless steel ball screw. Move the printing table without mechanical clearance.

8. Unique printing system, gluing, washing, printing rollers can expand more additional systems.

9. Double correction device, stainless steel rollers. Infrared ray probe ensures the conduction band running smoothly.

10. The dryer with high fabric entry saves your workspace.

Technical Parameter:

1.Efficient printing width: 1800~4000mm

2.Printing colors: 4~24

3.Screen pattern repeat: 640,726,819,914,1018,1200

4.Standard speed: 4~100m/min

5.Printing type: magnetic rod or scraper

6.Register precision: ±0.05mm

7.Driving type: independent servo driving

8.Digital main screen: optical fiber servo main line controls(Chinese-English display)

9.Dryer type: standard dryer, loose type dryer, open-width entry

11.Heating Source: thermal oil: (160°), natural gas(180°), steam(130°)

12.Air pressure: 0.6~0.8MPa

13. Water pressure: 0.3MPa

14. Total power: 105~165KW
