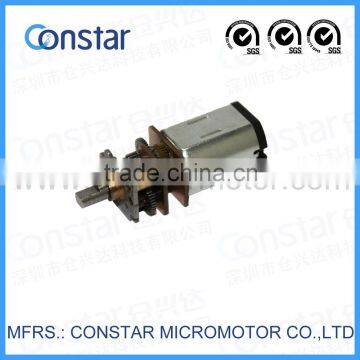

12*9mm high precision micro gear reducer with electric motor,dc motor
Negotiable
/ Piece
10 Pieces(Min. Order)
- Shenzhen or HK
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
12*9mm low speed low voltage small gear reducer with electric motor
-
12mm diameter high torque gear reduction dc electric dc motor
-
12mm diameter precisions gear motor,micro gear motor for auto equipment
-
12mm 20rpm low noise electrical magnet small geared motor
-
12mm 20rpm long llife precision coreless dc gear motor
-
12mm 20rpm high torque high-end brush mini dc metal gearbox motor
Product Details
| Place of Origin | Guangdong, China | Brand Name | Constar | |
| Model Number | GA1209F004 | Usage | Home Appliance, Other, Home Appliance, industrial robot,medical instrument | |
| Certification | CE, ROHS | Type | Gear Motor | |
| Torque | 215.6mNm | Construction | Permanent Magnet | |
| Commutation | Brush | Protect Feature | Totally Enclosed | |
| Speed(RPM) | 40rpm | Continuous Current(A) | 155mA | |
| Output Power | * | Voltage(V) | 6V | |
| Efficiency | Other, * |
Product Description
12*9mm high precision micro gear reducer with electric motor,dc motor
1.Applications: Audio and visual products, high-end toys, personal health care products and security equipment
2.Operating Environment: -10~+60°C; 15~90%RH
3.Characteristics:
The following are our standard products, we also provide customized products and service.
Series | Dimension (mm) | Voltage (V) | No-load Speed (rpm) | No-load Current (mA) | Load Torque (mNm) | Load Speed (rpm) | Load Current (mA) | Max Torque (mNm) | Reduction Ratio | |
GA1209F004-298 -1215FT005 | φ12*15.5 | 6 | 53 | 30 | 49 | 40 | 488 | 215.6 | 1/298 | |
4.Options: Lead wires length, shaft length, special coils, gearheads
