Home > Products > Gear Motor > Micro 10mm planetary dc gear motor with plastic gear box

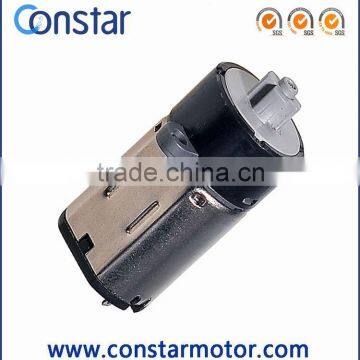

Micro 10mm planetary dc gear motor with plastic gear box
- Shenzhen or HK
- T/T L/C D/P D/A
You May Like
-
6mm~22mm DC metal reduction gearbox motor
-
1164rpm planetary gear motor,6mm 3V ,the qulity as well as siemens motors
-
10mm 2.5V speed reduce electric motor,80rpm DC motor,good qulity,made in china
-
Shenzhen Famous manufacturer,10mm reduce motor,compact gear motor,small electric motor,
-
Shenzhen manufacture,12mm wheelchair gear motor,reduction motor
-
5V 12mm planetary gear micro motor,75rpm electric motor speed reducer
Product Details
| Place of Origin | Guangdong, China | Brand Name | Constar | |
| Model Number | GH1007RC-1012F062-2.5 and more | Usage | Other, camera, toy, projector, lock and more | |
| Certification | CE, ROHS | Type | Gear Motor | |
| Torque | 9.8mNm | Construction | Permanent Magnet | |
| Commutation | Brush | Protect Feature | Other | |
| Speed(RPM) | 80rpm | Continuous Current(A) | 230mA | |
| Output Power | * | Voltage(V) | 2.5V | |
| Efficiency | IE 1 |
Product Description
Micro 10mm planetary dc gear motor with plastic gear box
Applications: Audio and visual products, high-end toys, personal health care products and security equipment
Operating Environment: -10~+60°C; 15~90%RH
Characteristics:
Standard Size Series | Voltage (V) | Terminal resistance (Ω) | No-load Speed (rpm) | No-load Current (mA) | Load Torque (mNm) | Load Speed (rpm) | Load Current (mA) | Max Torque (mNm) | Reduction ratio |
GH0607F | 3 | 13.7 | 1240 | 54 | 0.19 | 1164 | 54 | 3.2 | 1/25 |
GH1007RC | 2.5 | 3.7 | 110 | 100 | 9.8 | 80 | 230 | 37.2 | 1/171 |
GH1208RC -1230R003-2.5 | 2.5 | 1.2 | 100 | 150 | 19.6 | 90 | 370 | 166.6 | 1/120 |
GH1208FC -1215F050-2.5 | 2.5 | 3.5 | 95 | 60 | 14.7 | 75 | 180 | 68.6 | 1/120 |
GH1208FC -1220R018-3.0 | 3 | 4 | 105 | 100 | 19.6 | 73 | 260 | 76.4 | 1/120 |
GH1208FC -1215F051-5.0 | 5 | 17.8 | 88 | 35 | 14.7 | 66 | 100 | 62.7 | 1/120 |
GH1208RC -1230R004-5.0 | 5 | 7.5 | 86 | 70 | 19.6 | 75 | 160 | 137.2 | 1/120 |
GH1007RC -1012F062-2.5 | 2.5 | 3.7 | 110 | 100 | 9.8 | 80 | 230 | 37.2 | 1/171 |
GH1007FG -1012F062-2.5 | 2.5 | 3.7 | 110 | 100 | 9.8 | 80 | 230 | 37.2 | 1/171 |
Options: Lead wires length, shaft length, special coils, gearheads
