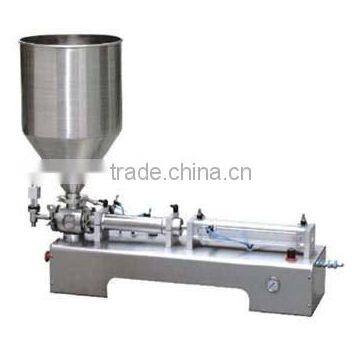

Semi-automatic Ointment Filling Machine DGF

Semi-automatic Ointment Filling Machine DGF

Introduction:(Semi-automatic Ointment Filling Machine)

ZHONGHUAN's Semi-automatic Ointment Filling Machine (DGF) are piston fillers that accurately deliver a measured volume of product to each container. The accuracy of these machines ensures bottom line savings by reducing the amount of product that is used as overfill. The DGF Semi-automatic Ointment Filling Machine are very flexible systems allowing them to adapt to a wide variety of products ranging from water to thick caulking compounds. They can also be used for lightweight containers that may be distorted by the forces of a vacuum or pressure filler. DGF fillers can also be fitted with an optional chunky product valve allowing them to fill products that include particulates. DGF machines come standard with a direct from drum draw kit (Optional hopper available) and can be set up, tested, and filling for production in a matter of minutes. The DGF piston fillers can be used as the center of your filling operation, an inexpensive back up machine, or an alternative to using contract packagers, eliminating the cost of down time and expensive set up for small runs. The ease of operation makes it easy to use and affordable.

Features:(Semi-automatic Ointment Filling Machine)

• This machine is the semi-automatic piston type ointment filling machine

• This machine is reasonable in design, small and exquisite in model, the pneumatic part adopts

   the  pneumatic components of Germany FESTO and Taiwan AirTac.

• The part contacting materials is made of 316L stainless steel.

• Both filling volume and filling speed can be adjusted at will, filling accuracy is high.

• Filling head adopts anti-leakage and lifting filling device.

Main features and technical parameters:(Semi-automatic Ointment Filling Machine)

Power supply 220/110V 50/60Hz

Air pressure  0.4-0.6MPa

Filling speed  5-20 Bottles/min.

Filling accuracy  ±1

Filling range  20-125ml  50-500ml  250-1000ml  500-2500ml  500-5000ml
