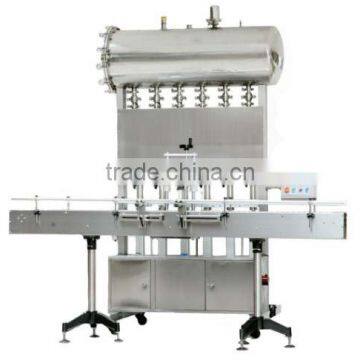

DFG-6T-6G Automatic Chili Sauce Filling Machine

DFG-6T-6G Automatic Chili Sauce Filling Machine

Introduction(Automatic Chili Sauce Filling Machine)

Ointment Filling Machine is designed on the basis of this company's series products with extra functions increased. The product is simple and convenient in operation, error correction, machine cleaning and maintenance. Widely used for filling various kinds of liquid nd oientment materials in the industries of daily chemicals, foodstuffs, pharmaceutics and oil.

Features(Automatic Chili Sauce Filling Machine)

Compact design, attractive appearance, convenient installation and filling adjustment.
With 6 filling heads and 6 cylinders, quick and accurate filling possible.
Adopt Germany FESTO and Taiwan's AirTac pneumatic elements and Japan Omron electrical control parts, with stable performance.
The parts connecting to the material are made of 316L stainless steel.
Convenient installation and filling adjustment, no missed filling and accurate filling dosage with a counter provided. Closure head preventing leakage and wire-drawing, filling elevating system preventing high froths, bottle top positioning system and liquid level control system provided.

Main features and technical parameters(Automatic Chili Sauce Filling Machine):

Model  4heads  6heads  8heads

Power supply 220/110V 50/60Hz

Air pressure  0.4-0.7MPa

Filling speed  20-40 Bottles/min.

Filling accuracy  ±1%

Current   3A

Power    500W

Filling range  20-125ml  50-500ml  250-1000ml  500-2500ml  500-5000ml
