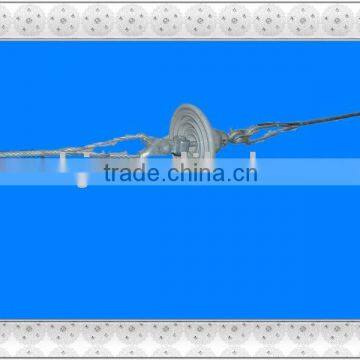

Preformed Guy Grip dead end Clamp
- Any port in China
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | OCEAN | |
| Model Number | ORN |
Product Description
Specifications
Preformed Guy Grip dead end Clamp1.High intensity;
2.Well corrosion resintance;
3.Easy installation;
Preformed Guy Grip dead end Clamp
Type&Structure
1.Guy Grip Clamp can be divided into the ordinary for the ordinary Guy Grip clamp, adjustable Guy Grip clamp for fixed large-scale Tower and a large microwave tower Guy Grip clamp, etc..It can replace commonly used in domestic fixed-line tower on the UT Guy Grip clamp, wedge clamp, etc.
2.Guy Grip clamp preformed wire legs twisted and the formation of air traffic control, rear for the preformed cutter ring.The formation of preformed wire legs wrapped in air traffic control when the Guy line can produce a strong grip strength, and to fix the twisted ring anchor or tower on the ground.
| Type | standered type | Suitable diameter(mm) | Suitable conductor type(mm2) | Clamp length(mm) | Weight(Kg) | Color code |
| ORN 3100 | NL-25/G | 6.60 | 25 | 636 | 0.20 | Yellow |
ORN 3101 | NL-35/G | 7.65-7.95 | 35 | 712 | 0.30 | black |
| ORN 3102 | NL-50/G | 8.95-9.30 | 50 | 903 | 0.55 | green |
| ORN 3103 | NL-70/G | 10.82-11.10 | 70 | 1018 | 0.85 | blue |
| ORN 3104 | NL-95/G | 12.50 | 95 | 1335 | 1.70 | red |
| ORN 3105 | NL-100/G | 13.00 | 100 | 1335 | 1.71 | green |
| ORN 3106 | NL-120/G | 14.00 | 120 | 1464 | 2.20 | blue |
we can design and organize as your needs,if you want to get more information, please contact us freely.
please let us know your conductor diameter.
