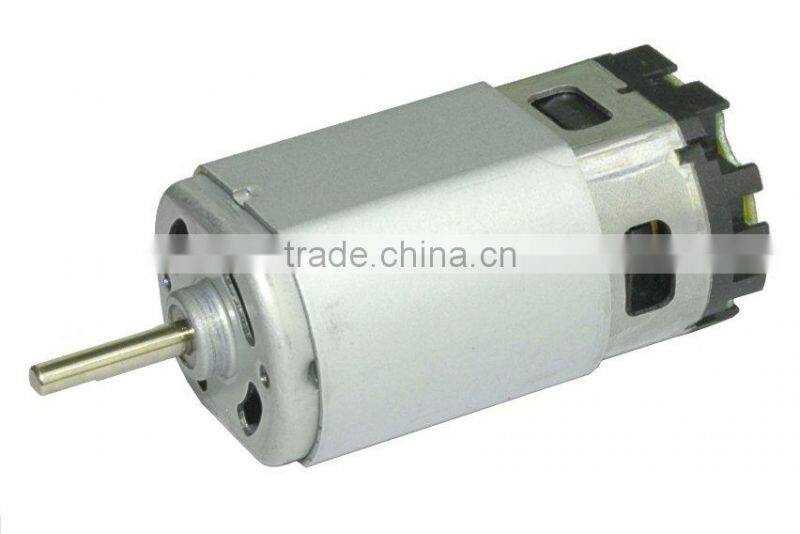

24V DC Power Brush Motor

Power brush motor
Weight: Approx.230g
Application: Gear box / Power brush/Sweeper

Note: All listed models are of avaliable design, and we provide customized designs.

1. FS-550A Series' Performaces

Model No.	Main Performance
	Rated Voltage	No Load		At Maximum Efficiency					At Stall
	Rated Voltage	Speed	Current	Speed	Current	Torque	Output	Eff.	Current	Torque
	V	r/min	A	r/min	A	g.cm	W	%	A	g.cm
FS-550SA-5036R	12.0 CONST	12,850	0.8	11,195	5.42	358	41.12	63.22	36.7	2790
FS-550SA-5044RX	12.0 CONST	10,800	0.6	9,303	3.71	305	29.1	65.39	23	2200
FS-555SA-2385	24.0 CONST	5,690	0.12	4,877	0.53	150	7.5	58.9	2.32	880
FS-555SA-4523RX	12.0 CONST	11,000	0.65	9,304	3.46	333	31.79	76.57	19	2160
FS-555SHFC2-5519RL	12.0 CONST	26500	1.35	23269	9.72	60.5	147.44	63.2	70	496.2

Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz

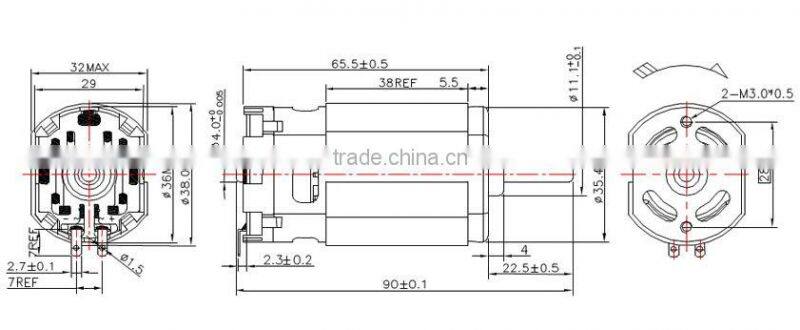

2. Mechanical Drawing

Power brush motor
Dimension: φ 37.8 x 31.5 Thk. x 65.5 L. shaft O.D. 3.175 mm
Basic Structure: SECD housing / Plastic end cap
Application: Gear box / Power brush / Sweeper / Mini chopper
Weight:Approx. 230g

3. A Brief Introduction of Chengfang Motors

Basic Structure of Chengfang Motors

Customized Options

·2-pole stator
·Sr ferrite permanent magnet
·3, 5, 7, 8, 9, 12,16 slots armature
·Silicon-steel lamination with epoxy coating
·High-carbon steel shaft
·Cu-Ag alloy commutator
·Copper-graphite brushes
·Be-Cu leaf-brush commutating system
·SECD round / flat type housing
·SECD end cap / glassfiber reinforced PA6/6 end cap
·Cylinder / self-aligning Cu-Fe alloy sintered bushes
·155oC (class F) magnet wire

·Leadwires with connector / pins
·EMI suppression components
·PTC or thermostate protection
·Built-in AC/DC rectifier
·Built-in cooling fan
·Multiple output shaft
·diamond knurls, straight knurls, D-cut, stepped shaft
·Shaft-mounted gears, eccentric gears, belt pulleys
·Stainless steel (SS304, SS420) shaft
·Ball bearing
·Cage-brush commutating system
·Precious metal brush / commutator
·Hall encoder
·Low-cogging torque design
·180oC (class H), 200oC (class C) magnet wire
·-40oC ~ 220oC bearing lubricant
·Neodymium magnets
