6v electric dc micro motor RS-380SA-6014R for water pumps

FOB Price

US$ 0.54 - 0.81 / Piece

10 Pieces(Min. Order)

Port Shenzhen Hongkong
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	CF Motor, Chengfang
Model Number	RS-380SA-6014R, RS-380SA-6014R	Usage	Boat, Car, Fan, Home Appliance
Certification	CE, ROHS, UL, VDE	Type	Micro Motor
Torque	100.7g*cm	Construction	Permanent Magnet
Commutation	Brush	Speed(RPM)	16400RPM
Continuous Current(A)	2.5A	Output Power	13W
Voltage(V)	24V	Efficiency	Other, 58.2%

Product Description

Overview Information

Input voltage	1.2VDC - 240VAC
Products	1 series	Φ20mm
	2 series	Φ24mm
	3 series	Φ28mm
	5 series	Φ36mm
	7 series	Φ42mm
	8 series	Φ45mm
	9 series	Φ52mm

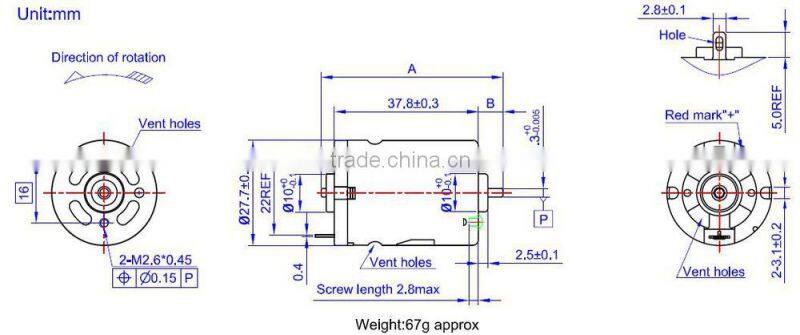

Detailed Dimension

Performance Data

Model No.	Main Performance
	Rated Voltage	No Load		At Maximum Efficiency					At Stall
	Rated Voltage	Speed	Current	Speed	Current	Torque	Output	Eff.	Current	Torque
	V	r/min	A	r/min	A	g.cm	W	%	A	g.cm
RS-380SA-6014R	2.4 CONST	16,400	2.5	13,028	9.66	100.7	13	58.2	37	490

Unit Conversion: 1g.cm≈0.098mN.m≈0.014oz.in 1mm=0.039in 1g=0.035oz

Basic Structure

Basic Structure of Chengfang Motors

Customized Options

2-pole stator

* Ferrite permanent magnet
* 3, 5, 7, 8, 9, 12,16 slots armature
* Silicon-steel lamination with epoxy coating
* High-carbon steel shaft
* Cu-Ag alloy commutator
* Copper-graphite brushes
* Be-Cu leaf-brush commutating system
* SECD round / flat type housing
* SECD end cap / glassfiber reinforced PA6/6 end cap
* Cylinder / self-aligning Cu-Fe alloy sintered bushes
* 155℃ (class F) magnet wire

* Leadwires with connector / pins
* EMI suppression components
* PTC or thermostate protection
* Built-in AC/DC rectifier
* Built-in cooling fan
* Multiple output shaft
* diamond knurls, straight knurls, D-cut, stepped shaft
* Shaft-mounted gears, eccentric gears, belt pulleys
* Stainless steel (SS304, SS420) shaft
* Ball bearing
* Cage-brush commutating system
* Precious metal brush / commutator
* Hall encoder
* Low-cogging torque design
* 180℃class H), 200℃ (class C) magnet wire
* -40℃ ~ 220℃ bearing lubricant
* Neodymium magnets

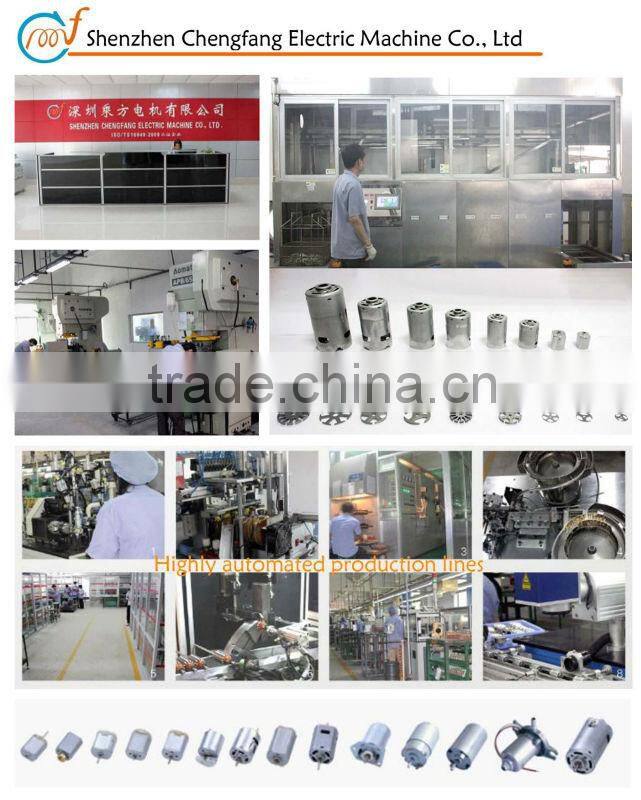

Factory Tour
