TNS digital display torsion spring testing machine/ spring torsion testing equipment

FOB Price

USD $1 - $10,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.usage:spring torsion test
3.manual control
4.digital display
5.with CE

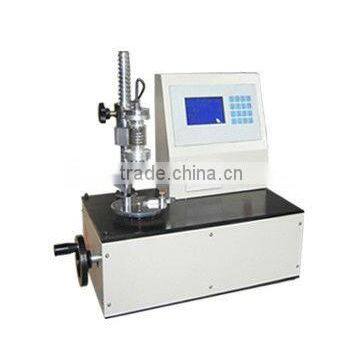

TNS digital display torsion spring testing machine

Main Application

TNS series vertical manual torsion spring testing machine applies to twist spring, spring, elastic elements of

rotor rolls and friction of the torsional horn, the test of torsional moment. It is the ideal testing equipment of industrial

and mining enterprises, the technical supervision, inspection arbitration, scientific research institutes, universities and

quality inspection unit and other departments.

Main Specs:

Model	TNS-50	TNS-100	TNS-200	TNS-500	TNS-1000	TNS-2000	TNS-5000
Max Test force	50 Nmm	100 Nmm	200 Nmm	500 Nmm	1000 Nmm	2000 Nmm	5000 Nmm
Test range	2%-100%
Test machine class	1 class
Test force Min reading value	0.001 Nmm	0.01 Nmm		0.1 Nmm
Angle min reading value	0.1°
Torque indicate relative error	≤ ±1%
Spring test length	0-70mm/ 0-160mm /0-260mm
Test angle range	0-±9999.9
Torque dish diam	100mm				180mm
Loading method	Manual Loading
Power supply	AC 220V/50Hz
