Product Details

Place of Origin	Shandong, China	Brand Name	hensgrand
Model Number	TLS-	Power	Electronic
Usage	Other, Spring Testing Machine

Product Description

Specifications

spring testing equipment
1.usage:spring tensile,compression,deformation test
2.digital table display
3.CE certificate

TLS digital display spring load testing machine

Application:

spring tension and compression testing machine, which is a special device for spring test and it is manufactured in terms of technical requirements stipulated in JB/T7796-2005 <Technical Conditions for Spring Tension and Compression Testing Machine>. It is mainly used for testing spring test force and strength of elastic element, namely in a certain deformation (or remaining highness) testing the spring force or testing spring remaining highness or deformation under certain test force. With test force showed, speed setting, batch test set and other functions. Meanwhile, it also has limit protection and overload protection and other functions.

Main specification:

Model	TLS
Max testng force	10KN,20KN,50 KN
Testing force range	2%-100%
accuracy	±1%
Displacement resolution	0.01mm
Displacement mesure accuracy	± 1%
Tesnsile space	700mm or more
Compression space	700mm or more
Testing space	700mm
Add load speed	0.05mm~500mm
Displacement speed control accuracy	± 1%
Tester level	1 calss
Deformation indicating error	≤±( 50+0.15L)
Power supply	220V/50HZ

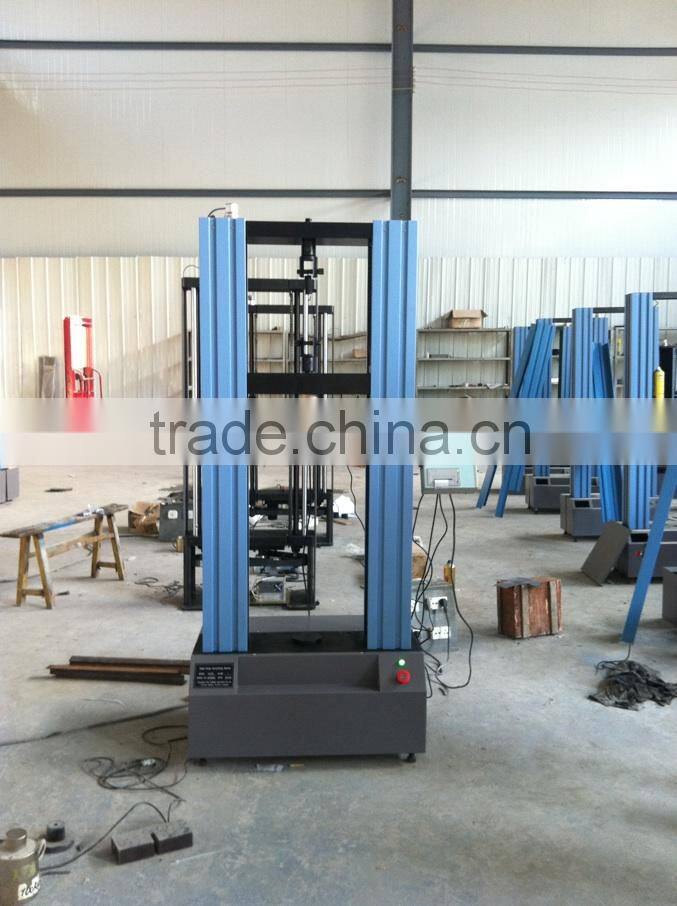

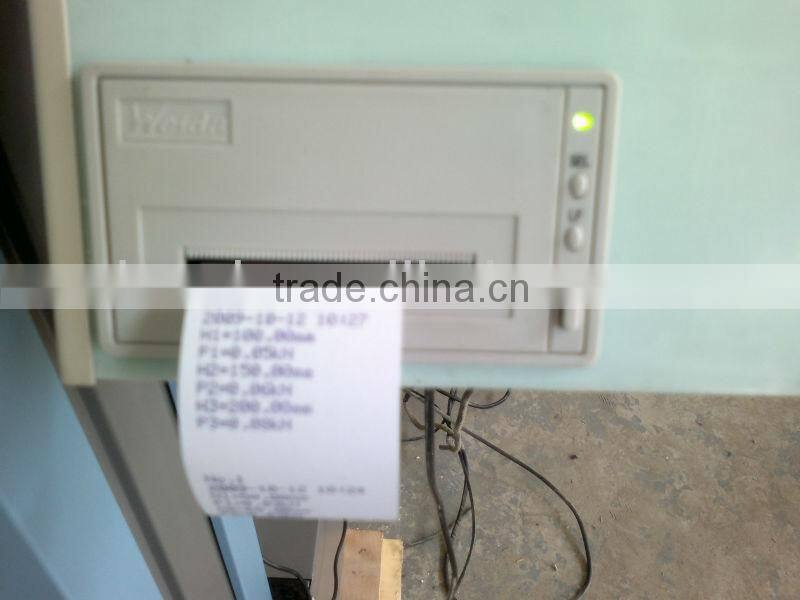

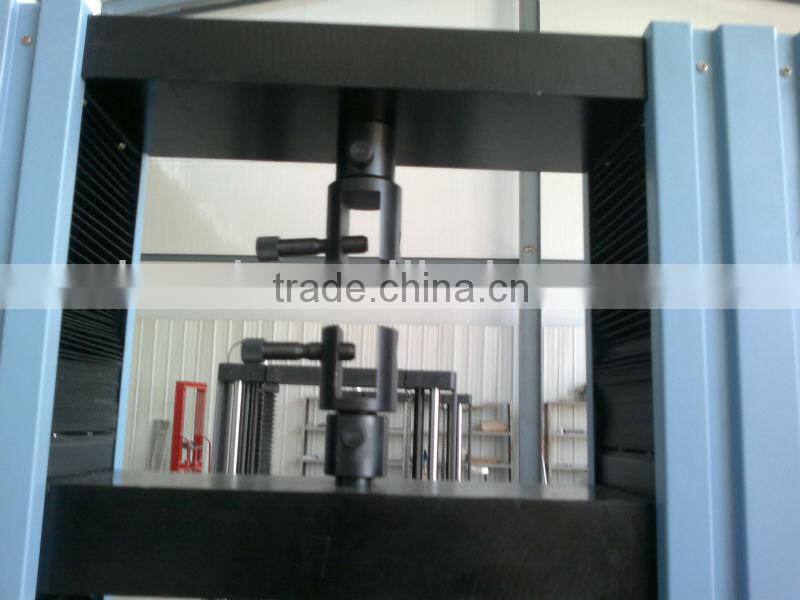

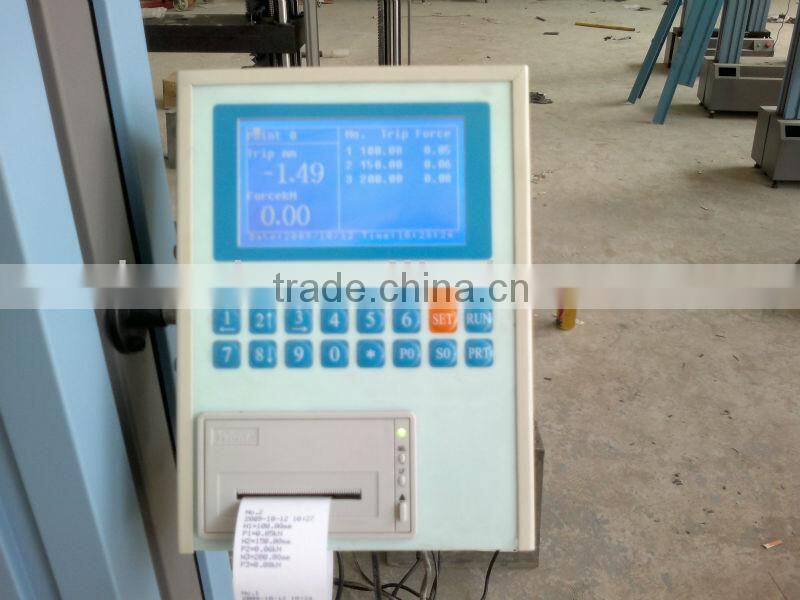

Spring Load Testing Machine Pics:

CE Certificate:
