CE agriculture melt flow type dripirrigation PE tape

Main technical parameter

MELT-FLOW TYPE DRIP IRRIGATION TAPE MAKING MACHINE

Features of melt-flow type drip irrigation tape making machine

The main motor, shaping device and tractor adopt frequency conversion control, which has characteristics of easy adjustment, reliable running, steady work and low energy consumption.

Screw of extruder adopts special design which makes raw materials plasticized well and the line works steadily.

The control of heating temperature of extruder and mold adopt temperature-automatic control system which has characteristics of high accuracy of control and obvious effect of energy-saving.

Winding machine adopts torque motor which overcomes tension-blemish effectively. And winding machine is also equipped with meter-counter and can alarm and stop automatically.

Certificate /Patent

Shaping mold :

The shaping mold is designed and manufactured by ourself .

We have our own mold manufacturing workshop .

The mold processing machine we use is Switzerland AGIE Brand .

Mold material is Sweden steel .

The mold precision is hign . The mold flow rate is less than 3%

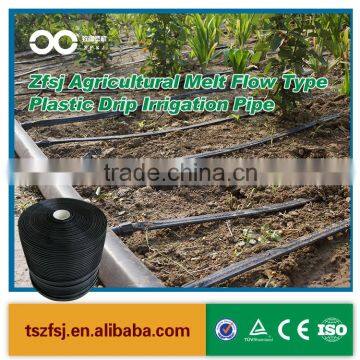

Features of the melt-flow type drip irrigation tape

Thin wall type drip irrigation tape, the labyrinth flow passage can be formed once, which performance is good.

It has turbulent flow passage and pressure compensation

Aperture type water outlet can be opened to make water flows only when the pressure exists. It will be closed automatically, when there is no pressure, therefore it can prevent root system of plant and soil etc. impurity from entering and avoid blocking water outlet.

The flow rate has strong stability.

The flexibility of emitter flow passage is good

The paving length is long

It features high erosion resistance

Melt-flow type drip irrigation tape making machine

Application range of melt-flow type drip irrigation tape:

It can be widely used in farm crops and greenhouse, the dripping volume and space of water dripping outlet can be supplied according to actual needs.

The melt flow type drip irrigation tubes  size produced by this drip irrigation tube machine is as follows :

1.Diameter : 16mm

2.Thickness:0.2mm-0.3mm

3.Distance:100mm,200mm,300mm..........can be adjusted by customers

4.Flow rate: 0.5-1.5 L/H  can be adjusted to customer’s demands

5.Roll quantity: 2000M

The tape is packaged by shrink film and paper cover .besides that we can also supply customer the package machine , and the price is 5000USD/SET .

Container Load :

1. One 20 F Container can load  : 364Rolls

2. One 40 F Container can load : 756Rolls

3. The standard quantity of One roll tape is 2000 Meters .

 Brief Introduction

Tangshan Zhifu Plastic Machinery Co., Ltd was established in 1986,which lies in the southeast of Beijing (capital of China)  It covers more than 50000m² area.

It is a knowledge-based, scientific and technological enterprise for special-purpose plastic machinery integrating design, develop, manufacture and service with advanced equipment, perfect monitoring method and strong technological foundation.

Our General manager has been received by Mr Hu president twice. T

The company has import-export authority independently and passes the Certificate of ISO9001 Quality System and European Union CE Certificate.

Our company which has more than ten years of history  for making drip irrigation equipment in China and even the biggest drip irrigation machine manufacturer and sale enterprise in the world.

The superior quality, favorable price and perfect after-sales service make the products be well received at home and abroad.

The management principle of our company is sincere cooperation and deep friendship, and our service aim is Quality First and Credit First and Customer First to meet the customer’s demand and expectation. We are devoted to the improvement of the product quality and service and try our best to provide the best quality product to friends from all over the world.
