Home > Products > Drip irrigaiton tape/pipe > ZFSJ agriculture flat dripper irrigation hose drip irrigation
ZFSJ agriculture flat dripper irrigation hose drip irrigation
- 100000 Meter / Meters per Month
- Xingang
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | ZFSJ | |
| Model Number | SJNXT | Material | Plastic |
Product Description
ZFSJ agriculture flat dripper irrigation hose drip irrigation
Features
1. There is window type filter on tne dripper and the anti-clogging capacity is strong;
2. The flow channel is turbulent and the water flow is steady;
3. The water outlet square is big which strengthen the anti-clogging capacity;
4. The distance can be chosen in a wide range;
5. The dripper is installed before being taken out from the factory which saves labor cost and reduce the inveatment;
6. The paving length on the ground can reach more than 80m;
7. Anti-erosion capacity is strong.
Sizes
| outside diameter(mm) | thickness(mm) | rated working pressure(Mpa) | water discharge rate(L/H) | water outlet space(mm) | filter mesh quantity(mesh) | max.paving length(m) | even degree(%) | each roll length(m) |
φ12 φ16 φ20 | 0.2~0.9 | 0.1 | 1~4 | 100~1000 | 120 | 120 | ≥90 | ≤2000 |

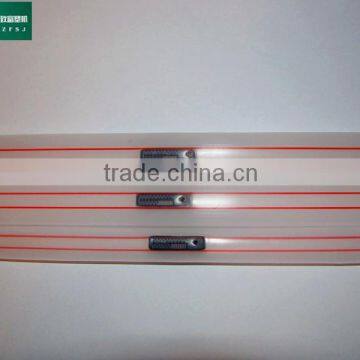

Flat dripper irrigation tape
with two marking line
Different flat drippers
Shaping mold of flat dripper
Technical parameter of the mold
Cavity quantity | Thirty-two cavity | Sixty-four cavity | Note |
Overall dimension of the mold (mm) | 350×350×270 | 500×450×455 |
|
Gate forms | Submarine gate/cold(hot) runner inlet | Submarine gate/hot runner inlet | Balance material feeding, automatically interrupted pouring |
Pushing-out mode | Once pushing-out of ejector pin | Once pushing-out of ejector | Making sure that the final products will drop off automatically |
Cooling mode | Water-cycle cooling | Water-cycle cooling |
|
Working mode | Automatic production | Automatic production |
|
Service life | One point five million times | One point five million times |
|
Producing deviation | ≤5% | ≤5% |
|
Emitter specifications | ¢6,¢8,¢12,¢16,¢20 | Deviation of emitter flowing rate | |
Model of injection molding machine for it | ZF1600-A | ZF2400-A | |
Application
Workshop and factory show
