Product Details
| Place of Origin | Shandong, China | Brand Name | HST | |
| Model Number | XNR | Power | Electronic | |
| Usage | Other, Plastic Testing Machine, Plastic melt flow index tester |
Product Description

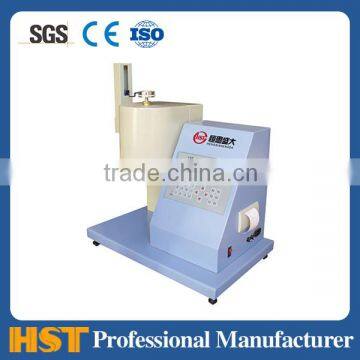

XNR-400D Melt flow Index Tester/ PE Testing Machine
Application:
XNR-400D Melt Flow Index Tester is accordance to ISO1133; GB3682 2000, ASTM D1238. It's suitable to measure melt flow character of PP, PE, POM, ABS plastics and plastic productions, widely used in factories, products quality testing station, scientific and research institutes, and concerned industries.
Main Specification:
Extrusion discharging part:
Diameter of discharging outlet: Φ2.095±0.005mm
Length of discharging outlet: 8.000±0.025mm
Diameter of charging barrel: Φ9.550±0.025mm
Length of charging barrel: 152±0.1mm
Diameter of piston rod head: Φ9.475±0.015mm
Length of piston rod head: 6.350±0.100mm
Standard load of test (eight class)
Grade 1: 0.325kg=(piston rod + scale pan+ lagging + No.1 weight=3.187N
Grade 2: 1.200 kg=(0.325+ No.2 weight 0.875)=11.77 N
Grade 3: 2.160 kg=(0.325+ No.3 weight 1.835)=21.18 N
Grade 4: 3.800 kg=(0.325+No.4 weight 3.475)=37.26 N
Grade 5: 5.000 kg=(0.325+ No.5 weight 4.675)=49.03 N
Grade 6: 10.000 kg=(0.325+No.5 weight 4.675+No.6 weight 5.000)=98.07 N
Grade 7: 12.500 kg=(0.325+No.5 weight 4.675+No.6 weight 5.000+ No.7 weight 2.500)=122.58 N
Grade 8: 21.600 kg=(0.325+No.2 weight 0.875+No.3 weight 1.835+No.4 weight 3.475+No.5 weight 4.675+No.6 weight 5.000+No.7 weight 2.500+No.8 weight 2.915)=211.82 N
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
A. Relative error of test load≤0.1%
B.Range of temperature: Room temperature50---450°C.
C. Accuracy of constant temperature:±0.1°C
D. Power supply:220V±10%,50Hz
E. Working environment: The temperature is 10°C—40°C, relative humidity is 30%—80%, no corrosive medium around,no strong air convection,no shake,no disturb from magnetic field
F. Resolution:0.1°C
F. Overall dimension (L x W x H)(mm):510×370×600
G. Host weight: 25kgs weights: 21.6kgs
XNR-400B XNR-400C
XNR-400D melt flow index tester
1.Shipping & delivery: It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
2. Machine' Packaging: Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
