HST-50 2TON 5TON 10TON 20TON Cable Tension Test Equipment
US$ 1,900 - 2,500
/ Set
1 Set(Min. Order)
- QINGDAO
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | HENSGRAND | |
| Model Number | ASZ | Power | Electronic | |
| Usage | Tensile Testing Machine |
Product Description

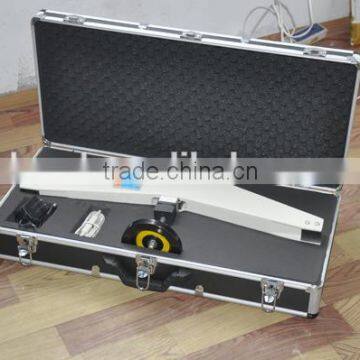

HST-50 2TON 5TON 10TON 20TON Cable Tension Test Equipment
Product Description
Applied Occasions:
Rope Tension Testing Instrument / Cable Tension Test Equipment can be applied to various occasions, such as power industry, telecommunications industry, transportation industry, glass curtain wall decoration, ropeway industry, construction industry, pleasure grounds, tunnel construction, fishing, major research institutions and teaching institutions, testing institutions and other occasions involved with the tension of ropes and steel wire ropes.
Functional Features:
1. It has the rope structure with tension force, and can be measured directly without the need of being taken apart.
2. It has the light weight, simple structure, convenient operation, and applies to any situations.
3. It has the stable performance, high measurement accuracy, with automatic system compensation function. When the specification of the tested rope is the same as the rope tension testing instrument rope number, the measurement accuracy can reach 2% error or less within the rated measurement range.
4. It has broader range of measurement, with 15 kinds of rope-diameter measuring functions.
5. Applied range: applied to flexible, stretched ropes, such as various steel wire ropes, high-strength ropes, etc.
6. Accuracy grade: 2~6% of maximum function (depending on the rope form and features).
7. Rope Diameter: ¢6~¢40mm.
Parameter:
| Item No. | Maximum load value (KN) | Divided load value (KN) |
| HST-20KN | 20 | 0.01 |
| HST-50KN | 50 | 0.01 |
| HST-100KN | 100 | 0.1 |
| HST-200KN | 200 | 0.1 |
