Home > Products > Load Cell Series > type load cell weight sensor HYLS01 electronic scales and weighing load cell Price competing scale digital load cell

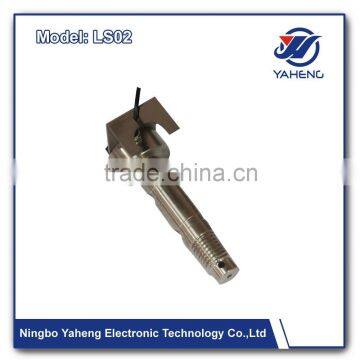

type load cell weight sensor HYLS01 electronic scales and weighing load cell Price competing scale digital load cell
- Ningbo or Shanghai
- Credit Card
You May Like
-
micro gas air pressure sensor 0 to10V air pressure sensor/micro weighing load cell Price competing scale digital load cell
-
BWG Single beam load cell Button type chinese load cells stainless steel load cell high quality
-
Alloy steel load cell 10kg Double ended beam load cell Single Point good quality load cell 1T to 100T Aluminum Load Cells
-
BH sensor for wireless tension load cell crane scale
-
BTY MB Self restoring load cell with light weight
-
SCNB sensor for high precision load cell
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YAHENG | |
| Model Number | HY-LS01 | Type | Crane Scale | |
| Power Supply | DC12V for load cell power, DC12V | Display Type | Digital | |
| Rated Load | 100T electronic shackles | Accuracy | Grade 3 , n=3000, Typically Better Than+/-0.75% of rated Load |
Product Description
15 ton crane scale features:
Material: Alloy steel or stainless steel
Rated sensitive: 2.0±0.002mv/v
Output signal:0~10V;4~20mA
Application: port, wharf cargo measurement and hoist and lifting equipment safety testing
Rated Load | 1~100t | Insulation resistance | ≥5000MΩ | |
Operation Temp. | -40~+80°C | |||
Rated output | 2.0±0.002mv/v | Safe overload | 150%F.S | |
Comprehensive error | ±0.02%F.S | Ultimate overload | 300%F.S | |
Creep(30min) | ±0.02%F.S | excitation voltage | 10~12V(DC) | |
Zero balance | ±1%F.S | Max.excitation voltage | 15V(DC) | |
Temp. Effect On Zero | ±0.02%F.S/10°C | Protection Class | IP67 | |
Temp. Effect On Span | ±0.02%F.S/10°C | Material | Alloy steel /Stainless steel | |
Input resistance | 400±10Ω | Cable | length:6~12m;diameter:6mm | |
Output resistance | 350±5Ω | Red: Input( +) Green: Output ( +) | ||
1.Plastic box for weighing indicators;Standard carton for load cells;or request by client.
2.Delivery time according to the order quantity.
Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather .
Company main products: wireless communication module , wireless , wireless loadometer weighing instrument / platform scale weighing system , direct explicit electronic crane scale , wireless electronic crane scale , wireless infrared remote control dynamometer , axle load scales , sensor detecting instrument , intelligent weighing control software , unattended weighing system and other products
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent, pls call us or tell us in your email so that we will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. We will provide you sample for free (value under USD15), as long as you afford the express freight.
3) How long can I expect to get the sample?
After you pay the sample charges(if there is) and send us confirmed drawings, the sample will be ready for delivery in 3-7 working days. The samples will be sent to you via DHL, FedEx,UPS,TNT or EMS. It should arrive in 3-5 workdays. You can use your own express account or prepay us if you don't have any account.
4) What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit if no tooling needed.
