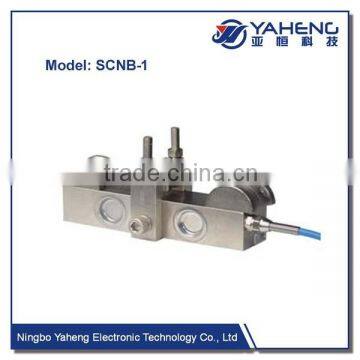

SCNB 1 crane load cell sensor low cost load sensor 2T 3T 5T 10t Rope Load Cell
- ningbo
You May Like
-
SCNB MA Compatible Load cell 1T to10T High Accuracy Single Point Load Cell platform weighing scale electronic scale load cell
-
QSA M Double beam load cell good quality load cell for sale High quality column type dynamic railroad scale load cell
-
Single beam load cell SB/SBA high quality and cheap prices of load cells 5kg 20kg 50kg 100kg Weigh module sensor load cell
-
QSB Double beam load cell Single Point Load Cells 1T 2T 5T load cell
-
QSB Double beam load cell Crane scale hook scale load cell ,compression load cell,beam load cell with stainelss steel
-
Tension load cell chinese TSA weighing sensor/load cell 300kg 500kgl/micro load cell in China
Product Details
| Place of Origin | Zhejiang, China | Brand Name | yaheng | |
| Model Number | SCNB-1 | Type | Other, LOAD CELL | |
| Power Supply | Battery | Display Type | Digital | |
| Rated Load | 10T | Accuracy | 100g |
Product Description
Rated capacities(Emax) | 1,2,3,5,10t |
Sensitivity | 1.0mv/v |
Total error | |
Creep error | ± 0.1%FS |
Zero balance | ± 1%FS |
TCO | ± 0.05%FS/ 1 0 ℃ |
TC SPAN | ± 0.05%FS/ 1 0 ℃ |
Input impedance | 385 ± 5 Ω |
Output impedance | 350 ± 2 Ω |
Insulation impedance | ≥ 5000M Ω |
Explosion protection | ExiallCT6 |
Temperature range | -30~+ 70 ℃ |
Maximum safe overload | 150%FS |
Ultimate overload | 200%FS |
Excitation ,recommend | 5~12V |
Excitation ,maximum | 15V |
Protection class | IP68 |
Construction | Alloy steel |
cable | Length: 1m |
Mode Of Connection | Red:excitation+ Black:excitation- Green:signal+ White:signal- |
1.Plastic box for weighing indicators;Standard carton for load cells;or request by client.
2.Delivery time according to the order quantity.
Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather .
Company main products: wireless communication module , wireless , wireless loadometer weighing instrument / platform scale weighing system , direct explicit electronic crane scale , wireless electronic crane scale , wireless infrared remote control dynamometer , axle load scales , sensor detecting instrument , intelligent weighing control software , unattended weighing system and other products
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent, pls call us or tell us in your email so that we will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. We will provide you sample for free (value under USD15), as long as you afford the express freight.
3) How long can I expect to get the sample?
After you pay the sample charges(if there is) and send us confirmed drawings, the sample will be ready for delivery in 3-7 working days. The samples will be sent to you via DHL, FedEx,UPS,TNT or EMS. It should arrive in 3-5 workdays. You can use your own express account or prepay us if you don't have any account.
4) What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit if no tooling needed.
