Home > Products > Bending Testing Machine > GW Steel Bar Bending Tester/Metal Bending Tester
GW Steel Bar Bending Tester/Metal Bending Tester
- Qingdao China
- T/T Credit Card
You May Like
-
GWS-8 Manual Wire Rod Repeated Bending Testing Machine / Metal Wire Bending Tester
-
Electric Cable Bending Testing Machine/Bending Tester
-
CR Metal Wire Winding Testing Machine/wire winding tester
-
Electric Metal Wire Bending Machine/Bending Testing Equipment
-
Electronic Metal Wire Bend Test Equipment, Bending Testing Machine
-
CR Wire Rod Winding Testing Machine
Product Details
| Place of Origin | Shandong, China | Brand Name | hensgrand | |
| Model Number | GW | Power | Electronic | |
| Usage | Bending Testing Machine |
Product Description
Specifications
1.usage:steel bar bend testing2.digital LCD display test data
3.large carry capacity
4.with CE certificate
GW Series Steel Bar Bending Tester
Application:
This testing machine can be used to do cold bend and rebend test on plane. The main technical parameters
accord with GB1499.2-2007 <The second part of Steel tube for the reinforcement of concrete: hot rolled ribbed steel bars>, YB/T5126-2003 <Program of steel bars plane rebend tests> .This machine is suitable for bend test of the metallic material - rods and bars, the plate, spiral steel, and widely applies in the building materials, the metallurgy, the Scientific research
Unit, the universities, colleges and institutes, the quality detection center and the commodity inspection department. It is
indispensable ideal testing machines to test the recurvating character and cold bending property of screw thread steel bar .
Main specifications:
Mode | GW-40B | GW-50B |
Max of bending diam of Steel Bar |
40mm |
50mm |
Forward bending angle | 0° to 180°at will | |
Reverse bending angle | 0° to 25°at will | |
Rotating speed of working table | ≤20°/s | |
Distance between the center of two rolls | 165mm | 165mm |
Diameter of the working table | Φ580mm | Φ760mm |
Motor power | 1.5kw | 2.2KW |
Standard bending accessory | HRB-335/φ6-φ40/or other configuration option | HRB-335/φ6-φ50/or other configuration option |
Weight | 1500kg | 2500kg |

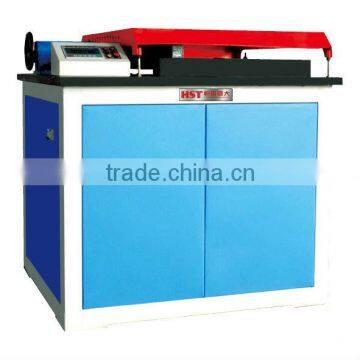

Steel Bar Bending Tester Pics:
CE Certificate:
