Home > Products > Three-phase motors > MS series 380V electric motors

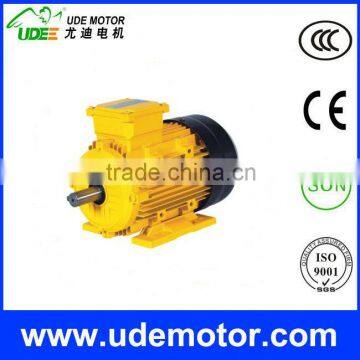

MS series 380V electric motors
- FUZHOU
- T/T
You May Like
Product Details
| Brand Name | UDE/UDE STAR | Model Number | MS Series | |
| Type | Asynchronous Motor | Frequency | 50HZ or 60HZ | |
| Output Power | 0.09KW--1.5KW(1/6HP--2HP) | Protect Feature | Totally Enclosed | |
| Phase | Three-phase | Certification | CCC, CE, CE, Other, CCC, CE, CE, ISO9001 ect. | |
| AC Voltage | Other, 380V (220V--760V are optional) | Place of Origin | Fujian, China | |
| Efficiency | Other, IE1,IE2,IE3 |
Product Description
Specifications
MS series 380V electric motors1.low noise
2.high torque
3.general use
4.fast delivery,nice price
induction mini motor with aluminum housing
Features:
1. Type: three phase asynchronous ac electric motors with aluminu housing
2. Construction: totally enclosed, fan cooled, squirrel cage type
3. Insulation: B/F/H class
4. Frame and housing is aluminum.
5. Advantage: perfect performance, low noise, slight vibration, reliable running, good appearance, small volume and light weight
Operating Conditions:
1. Ambient temperature: -15°C<0 < 40 °C
2. Altitude: not exceed 1000m
3. Duty/Rating: Continuous (S1)
4. Insulation class: B/F
5. Protection class: IP54/IP54
6. Cooling Method: ICO411
Use:
MS Series electric motors are widely applicable to food machine, blower and other machinery and equipment.
Technical Data:
| MS Series Three-Phase Asynchronous Motor With Aluminum Housing | |||||||||
| Type | Output | Current | Power Factor | Eff | Speed | Tstart/Tn | Ist/In | Tmax/Tn | |
| HP | KW | (A) | (cosφ) | (%) | (r/min) | ||||
| MS5612 | 1/6 | 0.09 | 0.32 | 0.68 | 62.0 | 2758 | 2.3 | 6 | 2.4 |
| MS5622 | 1/6 | 0.12 | 0.38 | 0.71 | 67.0 | 2780 | 2.3 | 6 | 2.4 |
| MS5632 | 1/4 | 0.18 | 0.53 | 0.75 | 69.0 | 2780 | 2.3 | 6 | 2.4 |
| MS6312 | 1/4 | 0.18 | 0.53 | 0.75 | 69.0 | 2715 | 2.2 | 6 | 2.4 |
| MS6322 | 1/3 | 0.25 | 0.69 | 0.81 | 68.0 | 2715 | 2.2 | 6 | 2.4 |
| MS6332 | 1/2 | 0.37 | 0.99 | 0.81 | 70.0 | 2715 | 2.5 | 6 | 2.7 |
| MS7112 | 1/2 | 0.37 | 0.99 | 0.81 | 70.0 | 2690 | 2.2 | 6 | 2.4 |
| MS7122 | 3/4 | 0.55 | 1.40 | 0.82 | 73.0 | 2715 | 2.2 | 6 | 2.4 |
| MS7132 | 1 | 0.75 | 1.83 | 0.83 | 75.0 | 2700 | 2.6 | 6 | 2.9 |
| MS8012 | 1 | 0.75 | 1.83 | 0.83 | 75.0 | 2730 | 2.2 | 6 | 2.4 |
| MS8022 | 1/5 | 1.10 | 2.58 | 0.84 | 77.0 | 2746 | 2.2 | 6 | 2.4 |
| MS8032 | 2.0 | 1.50 | 3.43 | 0.84 | 79.0 | 2770 | 2.8 | 6 | 3.1 |
